Steel Zinc Plated

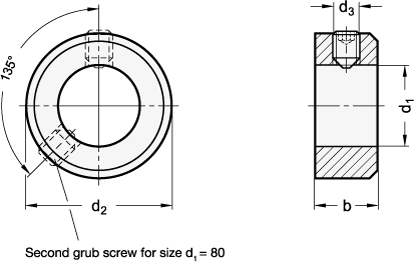

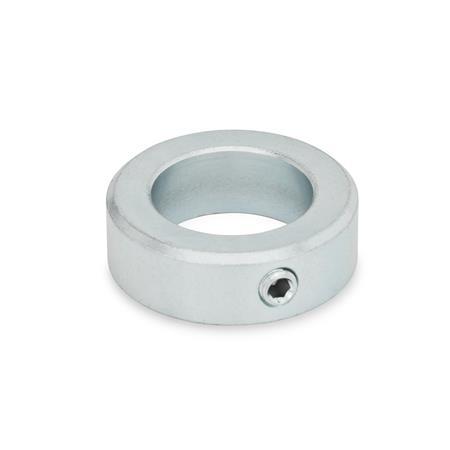

GN 705 Shaft Collars

Type

E	Grub screw with internal hexagon DIN 914

Show filter

d₁ H8 *	d₂	d₃	b js14

5	10	M3x4	6
6	12	M4x5	8
7	12	M4x5	8
8	16	M4x6	8
9	18	M5x8	10
10	20	M5x8	10
11	20	M5x8	10
12	22	M6x8	12
13	22	M6x8	12
14	25	M6x8	12
15	25	M6x8	12
16	28	M6x8	12
18	32	M6x8	14
20	32	M6x8	14
22	36	M6x10	14
24	40	M8x12	16
25	40	M8x10	16
26	40	M8x10	16
28	45	M8x12	16
30	45	M8x10	16
32	50	M8x12	16
35	56	M8x12	16
40	63	M10x16	18
45	70	M10x16	18
50	80	M10x16	18
55	80	M10x16	18
60	90	M10x16	20
70	100	M10x20	20
80	110	M12x20	22

Filter combination produces no result.

* The tolerances given in accordance with DIN 705 apply to blank set collars. As a rule, the surface treament has no detrimental effect on the proper function.

Specification

Steel

Zinc plated, blue passivatedZB

ISO Fundamental Tolerances

Highlights / Product information shaft collars

RoHS

Information

Shaft collars GN 705 essentially comply with the versions of DIN 705. GN 705 also contains a number of practical intermediate sizes in addition to the DIN-versions as well as Type E (grub screw with internal hexagon).

The clamping is done radially on the shaft or axle surface. Together with a dimpled hole or a groove at the collet diameter, the set collars can be positioned exactly and, at the same time, damage to the clamping point can be avoided.
