GN 192.1 T-Angle Linear Actuator Connectors

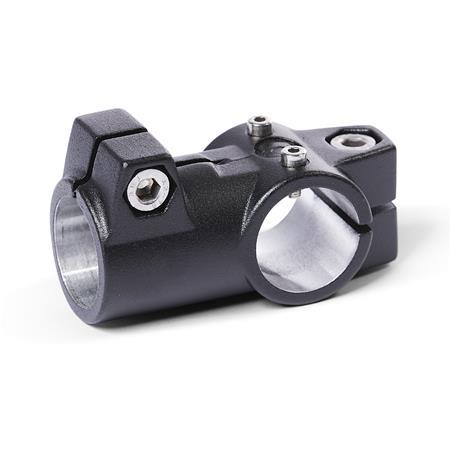

T Angle Linear Actuator Connectors GN 192.1 thumbnail

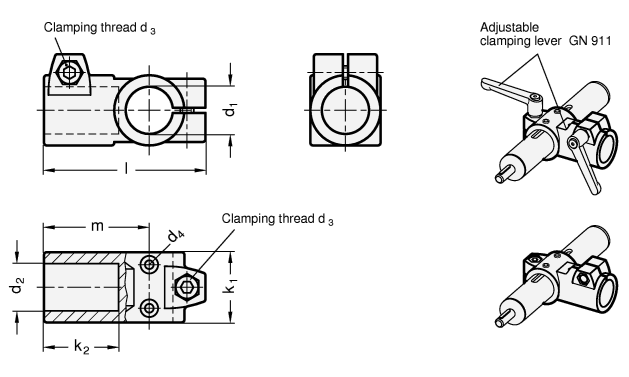

T Angle Linear Actuator Connectors GN 192.1 sketch

Identification no.

2	With 2 stainless steel socket cap screws DIN 912

Show filter

d₁ Bore without sleeve bearing	Bore with sleeve bearing	d₂ Bore	k₁ Clamping length	d₃ Mounting screws on the drive key	k₂ Clamping length	l₁	l₂	m	z₁ Screw location	z₂ Screw location	Accessory Recom. hand lever GN 911 for z₁ l₃	for z₂ l₃

B 30	G 30	B 30	40	M 4	42,5	92	52	60	M8-25	M8-25	63 \| 78	63 \| 78
B 30	G 30	B 30	56	M 4	62	130	68	90	M10-35	M10-35	-	-
B 40	G 40	B 40	56	M 5	62	130	68	90	M10-35	M10-35	78 \| 92	92
B 40	G 40	B 40	65	M 5	75	148	77,5	103	M10-50	M10-50	92	-
B 50	G 50	B 50	65	M 6	75	148	77,5	103	M10-50	M10-50	78 \| 92	78 \| 92
B 60	G 60	B 60	80	M 8	80	177	92	125	M10-50	M10-50	78 \| 92	-

Filter combination produces no result.

Specification

Aluminum
Powder coated
Black, RAL 9005, textured finishS

Sleeve bearing
Plastic (PTFE)

Socket cap screws DIN 912
Stainless Steel AISI 304

Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring

Stainless Steel Characteristics

Plastic Characteristics

RoHS

Accessory

Adjustable hand levers GN 911

Information

T-angle linear actuator connectors GN 192.1 are based on T-angle connector clamps. The additionally provided fastening holes are used to connect to the drive key of a linear actuator. Bores with the designation G are equipped with sleeve bearings.

With the screw location z₂, the play of the guide bores d₁ can be adjusted or the linear actuator connectors can be clamped after adjustment.

For quick clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.
