with Illuminated Push Button

GN 3310 Switches

Contact type

W	Changeover contact

Lighting

RG	Red/green (bi-color)

Identification no.

2	Button rounded

Connection type

K	Cable
KS	Plug

Show filter

Cable length l in meter Connection type K		Connection type KS	d Connection type K	Connection type KS	A/F

2	5	0,25	6	5	22

Filter combination produces no result.

Specification

Button
Stainless steel AISI 304

Cable (Outer sheath)
Polyurethan PUR
Black

Hexagon nut
Stainless steel AISI 304

Light guide
Plastic
Crystal-clear Polycarbonate (PC)

Plastic Characteristics

RoHS

Accessory

Cables with connector coupling M12x1 GN 330

Information

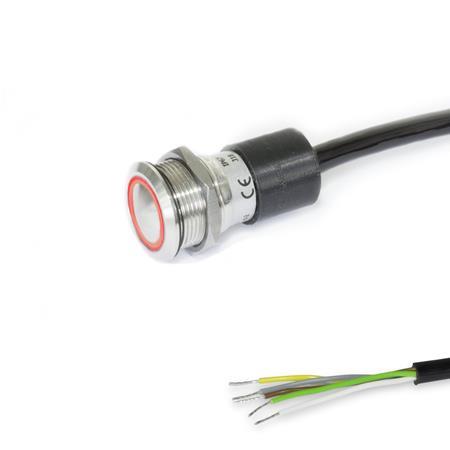

Switches GN 3310 with an illuminated push button come with a changeover switch and integrated LED ring light.

When the button is pressed, an electrical control impulse to switch off a machine, for example, can be triggered based on the wiring of the contacts (NC or NO).

Independent whether or not the button is actuated, the integrated LED ring lighting shines either red or green depending on the polarity of connections 1 and 2 of the LED.
