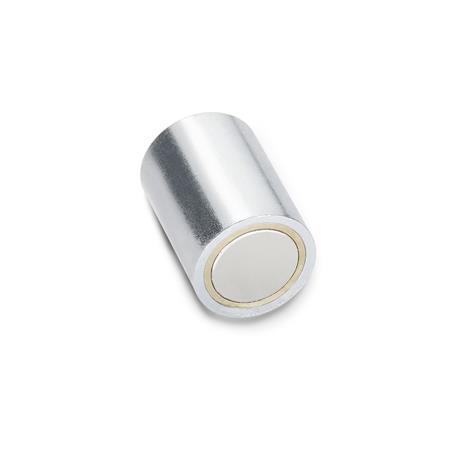

Rod-Shaped, without Bore, with / without Fit Tolerance

GN 52.1 Retaining Magnets

Identification no.

1	Tolerance d = ±0,1
2	Tolerance d = h6

Show filter

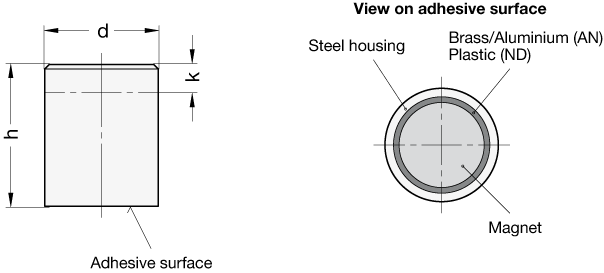

d	AN h ±0,2 Id. no. 1	k* Id. no. 1	h ±0,2 Id. no. 2	k* Id. no. 2	ND h ±0,2 Id. no. 1	k* Id. no. 1	h ±0,2 Id. no. 2	k* Id. no. 2	Nominal magnetic forces in N AN	ND#

4	-	-	-	-	20	15	10	7	-	2,5
5	-	-	-	-	20	15	10	6	-	4,5
6	20	12	10	2	20	15	10	5	2	6
8	20	11	12	3	20	15	12	7	4	12
10	20	10	16	6	20	15	16	11	8,5	24
13	20	8	18	6	20	15	18	13	12	60
16	20	6	20	6	20	15	20	15	20	90
20	25	5	25	5	25	18	25	18	40	135
25	35	13	30	7	35	27	30	22	60	190
32	40	9	35	4	40	32	35	27	160	340
40	50	10	45	5	-	-	-	-	240	-
50	60	10	50	-	-	-	-	-	400	-
63	65	10	60	5	-	-	-	-	660	-

Filter combination produces no result.

* k is the maximum dimension by which the retaining magnet can be shortened without losing its properties.

Specification

Housing
Steel

Identification no. 1: Zinc plated
Identification no. 2: Plain

Materials of the magnet:

AlNiCoAN
Aluminum, nickel, cobalt
Temperature resistant up to 450 °C
NdFeBND
Neodymium, iron, boron
Temperature resistant up to 80 °C

RoHS

Accessory

Holding Disks GN 70

Adhesive Disks GN 70.1

Rubber Caps GN 70.2

Information

Retaining magnets GN 52.1 are combined with a steel housing and insulation of brass/aluminum or plastic into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.

The retaining magnets are easy to fasten securely by pressing, shrinking or gluing.
