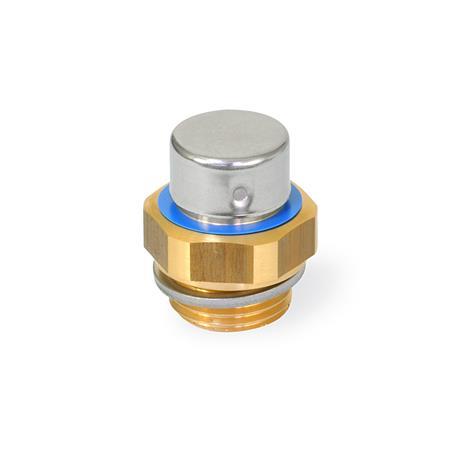

GN 882 Breather Filters

Show filter

d₁		d₂	d₃	e	l₁	l₂	l₃	A/F

M 12 x 1,5	-	18	20	23,5	8,5	11,5	24,5	22
M 14 x 1,5	-	20	20	23,5	8,5	11,5	24,5	22
-	G 1/4	20	20	23,5	7,5	10,5	24,5	22
M 16 x 1,5	G 3/8	22	20	23,5	8,5	11,5	24,5	22
M 18 x 1,5	-	24	20	23,5	8,5	11,5	24,5	22
M 20 x 1,5	-	26	20	29	8,5	11,5	24,5	27
M 22 x 1,5	-	27	20	29	8,5	11,5	24,5	27
-	G 1/2	26	20	29	8	12	25	27
M 24 x 1,5	-	29	20	32,5	8	12	25	30
M 26 x 1,5	G 3/4	32	20	34	8	12	25	32
M 30 x 1,5	-	36	20	39	8	12	25	36
-	G 1	39	20	44	8	12	25	41

Filter combination produces no result.

Specification

Valve body
BrassMS

Breather
Stainless steelM AISI 304

Air filter

Stainless steel wire mesh AISI 304
Filter category G2-G3
Mean separation rate (Am approx. 65 - 85 %, based on a particle size > 10 µm)

Seal DIN 7603 A
Soft iron 1.0338

Temperature resistant from -30 °C to +200 °C

Stainless Steel Characteristics

RoHS

Accessory

Mounting Nuts GN 7430

On request

Other materials

With dipstick

Information

Breather filters GN 882 are used when the air exchange is to be allowed between the inside of the container and the ambient air. The filter function is marked by a blue colour ring.

The stainless steel wire mesh prevents air-borne particles of a certain size from being carried from the outside to the inside of the container. It also ensures that e.g. oil particles do not escape to the outside.

The above diagram shows the air passage as a factor of the differential pressure.

Assembly instruction:
For mounting on walls of less than 4 mm thickness please use a mounting nuts GN 7430.
