AISI 316L

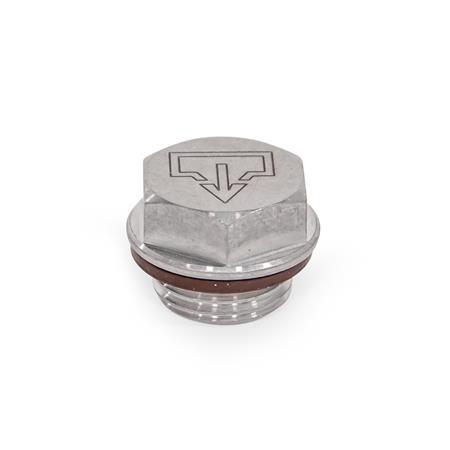

GN 742.5 Stainless Steel Threaded Plugs
Type
| O | Neutral |
| E | With DIN fill symbol |
| A | With DIN drain symbol |
Identification no.
| 1 | Without vent drilling |
| d1 | d2 | d3 | e ≈ | l1 | l2 | s | t | |
|---|---|---|---|---|---|---|---|---|
| 19 | G 1/4 | M 14 x 1,5 | M 5 | 17,3 | 15,5 | 8 | 15 | 8 |
| 22 | G 3/8 | M 16 x 1,5 | M 5 | 20,8 | 15,5 | 8 | 18 | 8 |
| 26 | G 1/2 | M 20 x 1,5 | M 5 | 24,3 | 16 | 8,5 | 21 | 8 |
| 32 | G 3/4 | M 26 x 1,5 | M 5 | 31,2 | 17 | 9 | 27 | 8 |
| 40 | G 1 | M 33 x 1,5 | M 5 | 37 | 19,5 | 11 | 32 | 8 |
Filter combination produces no result.
Specification
Stainless steel
AISI 316L
Precision turned, plain finish
Seal
Fluoro-elastomer (FPM / FKM)
RoHS
AISI 316L
Precision turned, plain finish
Seal
Fluoro-elastomer (FPM / FKM)
- Brown
- Temperature resistant up to 180 °C
RoHS
On request
Other thread sizes
With dipstick
With acrylonitrile butadiene rubber (NBR) seal GN 741.5
With dipstick
With acrylonitrile butadiene rubber (NBR) seal GN 741.5
Information
Stainless steel threaded plugs GN 742.5 can be used in particularly aggressive environments thanks to the material used.
The seal is embedded in a radial recess and thus cannot be lost, squeezed out or overloaded during tightening.
The outer diameter d1 of the stainless steel threaded plugs GN 742.5 is matched to screw-in holes for pipe fittings according to DIN 3852.
| How to order |
| ||||||||
GN 742.5-40-M33X1,5-A-1 |
