Detachable

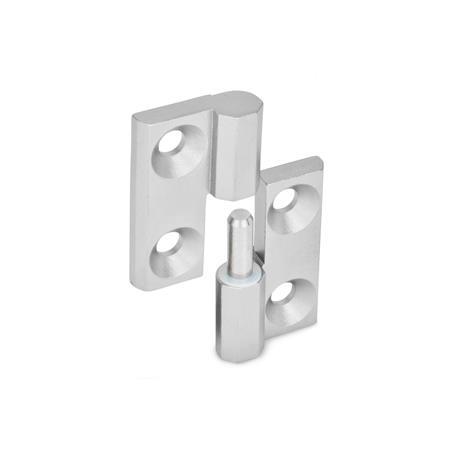

GN 337 Stainless Steel Hinges
Type
| A | 2x2 bores for countersunk screws |
Identification no.
| 1 | fixed bearing (pin) right |
| 2 | fixed bearing (pin) left |
| l1 | l2 | d1 | d2 | h1 | h2 | h3 | h4 +0,5 | l3 | m1 | m2 |
|---|---|---|---|---|---|---|---|---|---|---|
| 40 | 40 | 5,3 | 4 | 9 | 5 | 5,5 | 11 | 16 | 25 | 25 |
| 50 | 50 | 6,4 | 6 | 11,5 | 6 | 6,5 | 13 | 21 | 30 | 30 |
| 60 | 60 | 8,3 | 8 | 15 | 8 | 8,5 | 17 | 26 | 36 | 36 |
Filter combination produces no result.
Specification
Stainless steelNI
Matte shot-blastedGS
Pin
Stainless steel AISI 303
Washer
Plastic
RoHS
Matte shot-blastedGS
Pin
Stainless steel AISI 303
Washer
Plastic
RoHS
