GN 350 Stainless Steel Leveling Sets, Steel, zinc plated / stainless steel

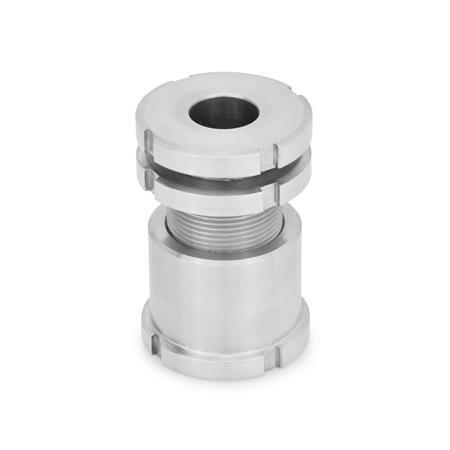

Stainless Steel Leveling Sets Steel zinc plated stainless steel GN 350 thumbnail

Stainless Steel Leveling Sets Steel zinc plated stainless steel GN 350 sketch

Type

A	Without lock nut
AK	With lock nut

Show filter

d₁	d₂	d₃	h₁ Type A	Type AK	h₂	h3 Adjustable range Type A	Type AK	for screw	Static load F in kN F₁	F₂	Code no. C-Spanner

25	6,6	M 15 x 1	28	33	43	15	10	M 6	27,1	20,2	DIN 1810-A25-28
32	6,6	M 20 x 1	35	41	55	20	14	M 6	43,4	36,5	DIN 1810-A30-32
32	9	M 20 x 1	35	41	55	20	14	M 8	43,4	30,8	DIN 1810-A30-32
32	11	M 20 x 1	35	41	55	20	14	M 10	43,4	23,4	DIN 1810-A30-32
45	11	M 30 x 1,5	42	49	67	25	18	M 10	84	64	DIN 1810-A45-50
45	13,5	M 30 x 1,5	42	49	67	25	18	M 12	84	54,8	DIN 1810-A45-50
45	17,5	M 30 x 1,5	42	49	67	25	18	M 16	84	28,9	DIN 1810-A45-50
58	17,5	M 40 x 1,5	54	63	86	32	23	M 16	148	92,9	DIN 1810-A58-62
58	22	M 40 x 1,5	54	63	86	32	23	M 20	148	59	DIN 1810-A58-62
58	26	M 40 x 1,5	54	63	86	32	23	M 24	148	20,3	DIN 1810-A58-62
70	22	M 50 x 1,5	66	77	106	40	29	M 20	225	136	DIN 1810-A68-75
70	26	M 50 x 1,5	66	77	106	40	29	M 24	225	97,3	DIN 1810-A68-75
70	33	M 50 x 1,5	66	77	106	40	29	M 30	225	20,6	DIN 1810-A68-75
80	26	M 60 x 2	76	87	126	50	39	M 24	323	195,3	DIN 1810-A80-90
80	33	M 60 x 2	76	87	126	50	39	M 30	323	118,6	DIN 1810-A80-90
80	39	M 60 x 2	76	87	126	50	39	M 36	323	38,2	DIN 1810-A80-90

Filter combination produces no result.

Specification

Stainless steelNI,
AISI 303 (X 10 CrNiS 18-9)

F₁: max.total load

F₂: max. load after deduction
of the max. preload
for screws 6.8, µ = 0,14

Stainless Steel Characteristics

RoHS

Accessory

C-Spanner DIN 1810
(code no. see table)

Information

Stainless steel leveling sets GN 350 are used for leveling and linking operations. They comprise a threaded upper sleeve and an internal threaded lower sleeve. The fine thread allows a stepless and precise setting and locking using the C-Spanner DIN 1810. A locking ring serves also as a height limiter for the max. height.

Normally this screw is permanently and securely locked by the static load created when the mounting screw is tightened.

Should this not be sufficient, the use of a locknut (Type AK) is recommended.
