for Grub Screws DIN 6332 / for Tommy Screws DIN 6304 / DIN 6306

GN 6311.1 Stainless Steel Thrust Pads

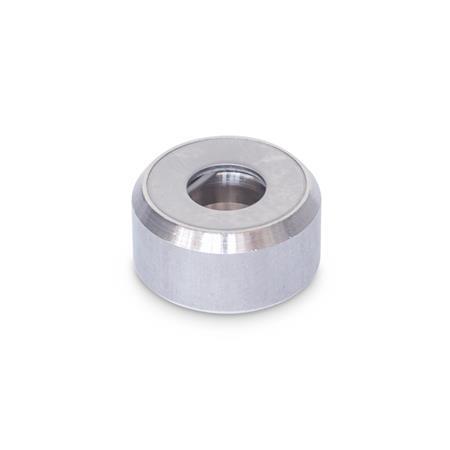

Stainless Steel Thrust Pads GN 6311.1 thumbnail

Stainless Steel Thrust Pads GN 6311.1 sketch

Type

A	Thrust pad surface plane, without plastic cap
K	Thrust pad surface plane, with plastic cap
P	Thrust pad surface with detent, without plastic cap

Show filter

d₁	b	d₂ +0,2	d₃ min.	max.	e ≈ Type A	Type P	h₁	h₂	s	suitable for grub screw DIN 6332

12	8	5,2	7,5	16	1,5	4,5	6	9	1,5	M 6	-
16	10	6,3	7,5	20	2,3	5,3	8	11	1,5	M 8	-
20	12	9,2	7,5	24	2,6	5,6	10	13	1,5	M 10	M 12
25	16	9,2	7,5	32	2,9	6,9	11	15	1,5	M 10	M 12
32	22	12,5	7,5	44	4,5	9,5	14	19	1,5	M 16	-
40	25	16,5	7,5	50	4,5	10,5	16	22	1,5	M 20	-

Filter combination produces no result.

Specification

Stainless steelNI AISI 304

Retaining spring
Stainless steel AISI 301

Plastic cap (Polyacetal POM)

Natural color
Temperature resistant up to 100 °C

Plastic Characteristics

Stainless Steel Characteristics

RoHS

Information

Stainless steel thrust pads GN 6311.1 are used in conjunction with grub screws fitted with thrust point (grub screws DIN 6332, tommy screws DIN 6304 and DIN 6306) to transmit clamping force. They align themselves on uneven and non-parallel surfaces and thus prevent the rotating force being transmitted to the workpiece.

The plastic cap (type K) prevents damage to delicate workpieces.

The unique shape of the retaining spring permits easy insertion and removal of grub screws into or from the thrust pad.

Stainless Steel-Thrust pads GN 6311.1 can be used in conjunction with DIN 6332 grub screws as leveling feet.
