with Lever, with and without Rest Position

GN 7017 Indexing Plungers

Type

B	Without rest position, without lock nut
BK	Without rest position, with lock nut
C	With rest position, without lock nut
CK	With rest position, with lock nut

Show filter

d₁ Plunger h11 Bore +0,03/+0,08	d₂	d₃	e	l₁	l₂ min.	l₃	l₄	l₅ min.	A/F	max. tightening torque in Nm	Spring load in N≈ initial	end

4	M 6	2,5	6,9	32	9,5	20	2,5	16	6	1,6	3	10
5	M 8	3	9,2	42	12	27	3,1	19,5	8	4,5	3,5	13,5
6	M 10	3,5	11,5	51	14	33,5	3,7	24	10	10	4	16
8	M 12	5	13,8	54	19	31,8	4,3	32	12	13	4	22
10	M 16	5	19,6	77,5	25	50,5	5	33,5	16	42	4	23

Filter combination produces no result.

Specification

SteelST
Zinc plated, blue passivated

Pressure spring
Stainless steel AISI 301

Load Rating Information

ISO Fundamental Tolerances

Stainless Steel Characteristics

Metric ISO Thread DIN 13

RoHS

Information

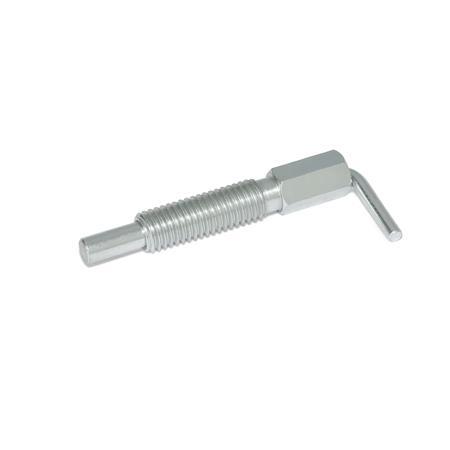

Indexing plungers GN 7017 are activated through a lever and are characterized by small dimensions. These indexing plungers are universally applicable due to their prevention of misalignments and positioning errors of the mating indexing bores.

The type C / CK with rest position are used for such applications where the plunger has to stay in its retracted position.

During assembly, the max. tightening torques shown in the table should not be exceeded when securing the lock nut.
