without Thread, with Collar

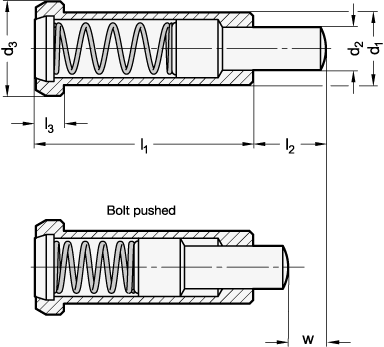

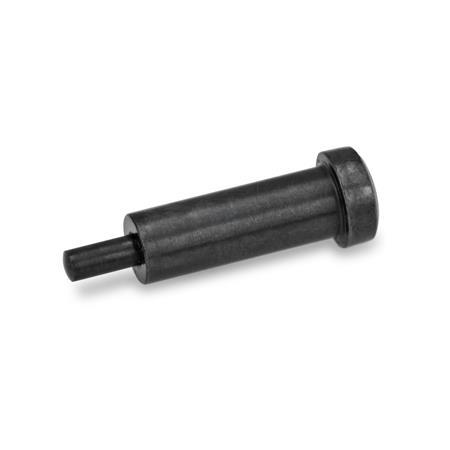

GN 614.6 Spring Plungers
Type
| K | Steel, standard spring load |
| KN | Stainless steel, standard spring load |
| d1 -0,05 | d2 | d3 | l1 | l2 | l3 | w Compression | Spring load in N ≈ Initial | End |
|---|---|---|---|---|---|---|---|---|
| 6 | 2,7 | 8 | 20 | 6 | 3,2 | 3,5 | 10 | 22 |
| 8 | 3,9 | 10 | 24 | 8 | 3,2 | 4,5 | 30 | 88 |
| 10 | 5,9 | 13 | 30 | 10 | 4 | 5,5 | 42 | 110 |
| 12 | 7,9 | 16 | 36 | 12 | 5 | 6,5 | 50 | 130 |
Filter combination produces no result.
Specification
Type K
Type KN
Pressure spring
Stainless steel AISI 631
RoHS
- Housing
Steel, blackened - Bolt
Steel, blackened
Case-hardened
Type KN
- Housing
Stainless steel AISI 303 - Bolt
Stainless steel AISI 303
Nitrided
Pressure spring
Stainless steel AISI 631
RoHS
Information
Spring plungers GN 614.6 are primarily used in toolmaking as spring-loaded stops as well as for pressure and hold-off functions.
Tolerance d1 H7 is recommended for the mounting hole.
| How to order |
| ||||
GN 614.6-10-K |
