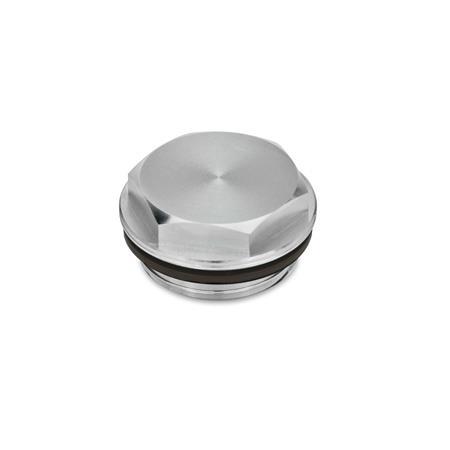

GN 742 Threaded Plugs

Type

OS	Neutral, plain
OSS	Neutral, black anodized
ES	With DIN re-fill symbol, plain
ESS	With DIN re-fill symbol, black anodized
AS	With DIN drain symbol, plain
ASS	With DIN drain symbol, black anodized

Identification no.

1	Without vent drilling
2	With vent drilling

Show filter

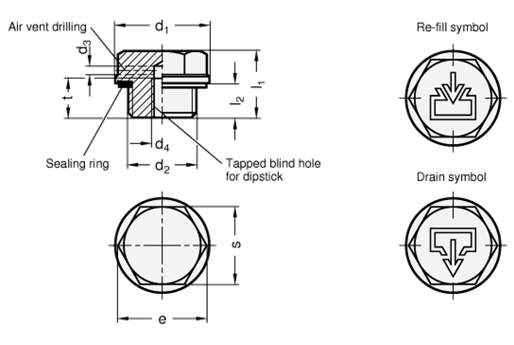

d₁	d₂				d₃ Vent drilling	d₄	e ≈	l₁	l₂	s	t

19	G 1/4	M 14 x 1,5	-	-	2	M 5	17,3	15,5	8	15	8
22	G 3/8	M 16 x 1,5	-	-	2	M 5	20,8	15,5	8	18	8
26	G 1/2	M 20 x 1,5	-	-	2	M 5	24,3	16	8,5	21	8
32	G 3/4	M 26 x 1,5	M 27 x 1,5	-	2	M 5	31,2	17	9	27	8
40	G 1	M 33 x 1,5	-	-	2	M 5	37	19,5	11	32	8
50	G 1 1/4	M 40 x 1,5	M 42 x 1,5	M 42 x 2	2	M 5	47,3	21	12	41	8
60	G 1 1/2	-	-	-	2	M 5	57,7	22	13	50	8

Filter combination produces no result.

Specification

Aluminum

Type OS, ES and AS
Fine turned, plain
Type OSS, ESS and ASS
Fine turned, black anodized
Symbols laser engraved

Seal
Fluorine caoutchouc (FPM / FKM)

Brown
Temperature resistant
up to 180 °C

Elastomer Characteristics

RoHS

On request

With dipstick

Information

Threaded plugs GN 742 are fitted with outside diameter d₁ to suit screw holes with BSP threads to DIN 3852.

The sealing is bedded into a undercut groove which prevents it from dropping out and at the same time stops it from being extruded when tightening the cap.

How to order
