Pneumatic

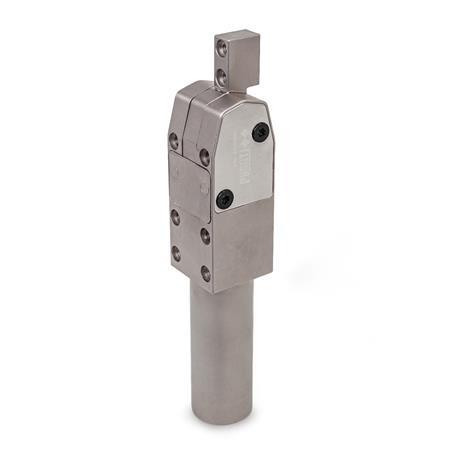

GN 865 Power Clamps, clamping arm vertical
Type
BI | Clamping arm vertical |
Size (Piston-Ø) | max. Clamping moment in N at 6 bar | FS in N Clamping force at r at 6 bar | FH in N Holding capacity at r at 6 bar | a | b -0,2 | d1 h8 | d2 | d3 H8 | d4 | d5 Thread | h1 | h2 | l1 -0,5 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
20 | 60 | 1250 | 2300 | 10,5 | 10 | 28 | M 5 | 7 | 4,2 | M 5 | 16 | 16 | 150 |
32 | 150 | 2220 | 3040 | 15,5 | 12 | 40 | M 6 | 9 | 5 | G 1/8 | 21 | 21 | 206 |
40 | 300 | 3640 | 4060 | 18,5 | 16 | 50 | M 8 | 11 | 6,8 | G 1/8 | 26 | 26 | 244 |
50 | 475 | 4900 | 7200 | 21,5 | 18 | 60 | M 10 | 13 | 8,5 | G 1/8 | 31 | 31 | 279 |
Filter combination produces no result.
Size (Piston-Ø) | l2 -0,5 | l3 | l4 | l5 | l6 | l7 -0,5 | m1 ±0,01 | m2 | m3 ±0,01 | m4 ±0,01 | m5 ±0,01 | m6 | r | s | t |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
20 | 171 | 70 | 21 | 4,5 | 21 | 97 | 12 | 7,5 | 17 | 34 | 22 | 13 | 47,5 | 32 | 13 |
32 | 237 | 91 | 31 | 6 | 31 | 133 | 18 | 10 | 25 | 51 | 30 | 22 | 67,5 | 42 | 15 |
40 | 282 | 104 | 38 | 7,5 | 38 | 155 | 22 | 13 | 30 | 62 | 37 | 25 | 82,5 | 52 | 18 |
50 | 323 | 110,5 | 44 | 8 | 44 | 174 | 27 | 12 | 47 | 71,5 | 44 | 35 | 96,5 | 62 | 21 |
Filter combination produces no result.
Specification
Steel C 45
Chemically nickel platedNC
Max. pressure 10 bar
https://www.youtube.com/watch?v=FpaDoyV4mDg
List of Pneumatic Clamps
Information for Power Clamps (Operating principle / Range)
Information for Power Clamps (Mounting methods / Accessories)
Operating Instruction for Power Clamps
ISO Fundamental Tolerances
RoHS
Chemically nickel platedNC
Max. pressure 10 bar
https://www.youtube.com/watch?v=FpaDoyV4mDg
List of Pneumatic Clamps
Information for Power Clamps (Operating principle / Range)
Information for Power Clamps (Mounting methods / Accessories)
Operating Instruction for Power Clamps
ISO Fundamental Tolerances
RoHS
On request
With anti-stick coating for protection against welding spray and corrosion
Information
The maximum clamping moment of the power clamps GN 865 is reached once the clamping arm is at the end of its stroke. For this reason the working stroke should be completed as closely as possible to the stroke end.
