for Slot Widths 8 / 10, Assembly with T-Nuts / T-Slot bolts

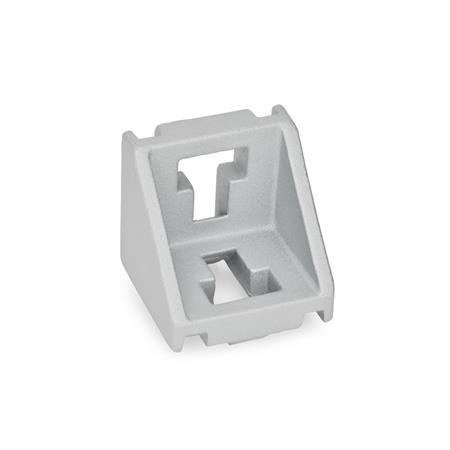

GN 960 Angle Pieces for Profile Systems 30 / 40 / 45

Type

A	Without assembly set, without cover cap
B	With assembly set, with cover cap
C	With assembly set, without cover cap

Show filter

b₁ Nominal dimension	Actual dimension	n	l₁	l₂	b₂	h	l₃	l₄	l₅	l₆	s

30	28	8	30	30	6,3	2,1	3	9,7	10,4	6,8	5,9
40	38	10	40	40	8,5	4,1	4	9,5	20	7,2	5,6
45	43	10	45	45	8,5	4,1	4	15,7	18,7	11,5	9,7

Filter combination produces no result.

Specification

Aluminum die casting

Matte, groundMT
Powder coated
Black, RAL 9005, textured finishSW
Silver, RAL 9006, textured finishSR

T-slot bolt GN 505.4
with hexagon flange nut DIN 6923
Steel
Zinc plated, blue passivated

T-nut GN 505
with socket cap screw DIN 7984
Steel
Zinc plated, blue passivated

Cover cap
Plastic (Polyamide PA)
Black, matte finish

Plastic Characteristics

RoHS

Information

To mount angle pieces GN 960 in place, insert the assembly sets into the profile slot through the opening. When tightening, the nut or bolt will be cross-positioned and thus anchored in the slot.

For crossing profiles or when using the angle pieces with components without a slot, the removable guide steps can simply be snapped off.

After assembly, the cover caps are snapped into place via four lugs. They give the angle piece an attractive appearance and protect against dirt.

Even after repeated use, the cover caps will remain firmly attached to the angle pieces, thanks to the elastic snap-type lugs. If required, they are also available individually under standard GN 963.
