Aluminum

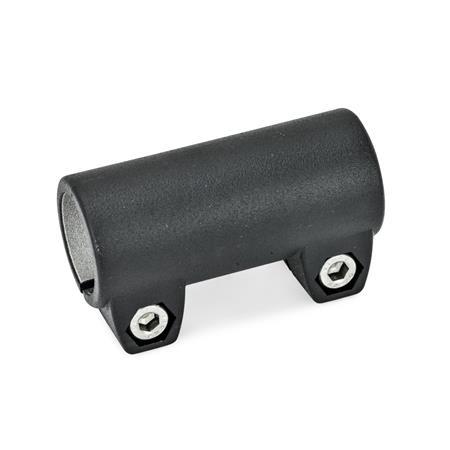

GN 242 Tube Connectors
Identification no.
| 2 | With 2 stainless steel socket cap screws DIN 912 |
| d1 Bore | d2 Bore | d3 | k1 Clamping length | k2 Clamping length | l1 | l2 | z Screw locations | Accessory recom. hand lever GN 911 for z l3 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| B 20 | B 20 | B 25 | 40 | 45 | 45 | 90 | 52 | M8-25 | - | - |
| B 25 | B 25 | B 30 | 40 | 45 | 45 | 90 | 52 | M8-25 | 63 | 78 |
| B 30 | B 30 | - | 40 | 45 | 45 | 90 | 52 | M8-25 | 63 | 78 |
| B 40 | B 40 | B 50 | 65 | 70 | 70 | 140 | 77,5 | M10-50 | - | - |
| B 42 | B 42 | - | 65 | 70 | 70 | 140 | 77,5 | M10-50 | - | - |
| B 45 | B 45 | - | 65 | 70 | 70 | 140 | 77,5 | M10-50 | 78 | 92 |
| B 48 | B 48 | - | 65 | 70 | 70 | 140 | 77,5 | M10-50 | 78 | 92 |
| B 50 | B 50 | - | 65 | 70 | 70 | 140 | 77,5 | M10-50 | 78 | 92 |
Filter combination produces no result.
Specification
Aluminum
Socket cap screws DIN 912
Stainless steel AISI 304
Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring
RoHS
- Powder coated
Black, RAL 9005, textured finishSW
- Plain, Matte shot-blastedBL
Socket cap screws DIN 912
Stainless steel AISI 304
Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring
RoHS
Accessory
Adjustable Hand Levers GN 911On request
d1/d2 with unequal bores
Information
The clamping bores of tube connectors GN 242 are mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.
At the screw locations z the socket cap screws reduce the bore cross-section for clamping.
For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.
| How to order |
| ||||||||
GN 242-B50-B50-2-SW |
RoHS compliant:
-
-
Weight:
-
-
