Stainless Steel

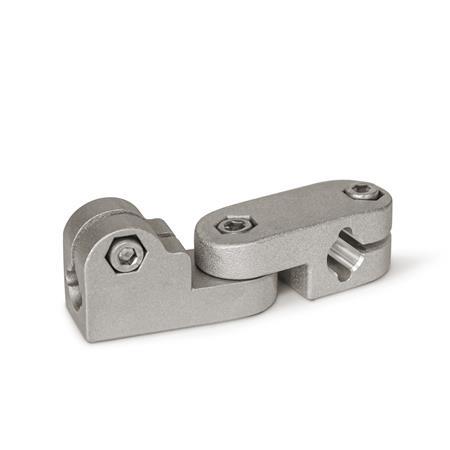

GN 287 Swivel Clamp Connector Joints
Identification no.
| 2 | With 3 stainless steel socket cap screws DIN 912 |
| d1 Bore | d2 Bore | b Swivel width | k1 | k2 | l1 | l2 | l3 | m1 | m2 | z1 Screw locations | z2 Screw location | Accessory Recom. hand lever GN 911.3 for z1 l4 | for z2 l4 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B 12 | B 12 | B 14 | B 15 | B 16 | B 18 | B 20 | 25 | 31,5 | 25 | 100 | 34,5 | 25 | 29,5 | 48,5 | M6-20 | M6-20 | - | 45 | 63 |
| B 14 | B 12 | B 14 | B 15 | B 16 | B 18 | B 20 | 25 | 31,5 | 25 | 100 | 34,5 | 25 | 29,5 | 48,5 | M6-20 | M6-20 | - | 45 | 63 |
| B 15 | B 12 | B 14 | B 15 | B 16 | B 18 | B 20 | 25 | 31,5 | 25 | 100 | 34,5 | 25 | 29,5 | 48,5 | M6-20 | M6-20 | - | 45 | 63 |
| B 16 | B 12 | B 14 | B 15 | B 16 | B 18 | B 20 | 25 | 31,5 | 25 | 100 | 34,5 | 25 | 29,5 | 48,5 | M6-20 | M6-20 | - | 45 | 63 |
| B 18 | B 12 | B 14 | B 15 | B 16 | B 18 | B 20 | 25 | 31,5 | 25 | 100 | 34,5 | 25 | 29,5 | 48,5 | M6-20 | M6-20 | 63 | 45 | 63 |
| B 20 | B 12 | B 14 | B 15 | B 16 | B 18 | B 20 | 25 | 31,5 | 25 | 100 | 34,5 | 25 | 29,5 | 48,5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 |
Filter combination produces no result.
Specification
Stainless steelNI AISI CF-8
Matt shot-blasted
Socket cap screws DIN 912
Stainless steel AISI 304
Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring
RoHS
Matt shot-blasted
Socket cap screws DIN 912
Stainless steel AISI 304
Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring
RoHS
Accessory
Adjustable Hand Levers GN 911.3Information
Swivel clamp connector joints GN 287 are an assembly of swivel clamp connectors GN 275 and GN 277.
The clamping bores are mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.
At the screw locations z1, the socket cap screws reduce the bore cross-section for clamping.
For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911.3 listed in the table as accessories.
| How to order |
| ||||||||
GN 287-B18-B15-2-NI |
RoHS compliant:
-
-
Weight:
-
-
