Aluminum, Unequal Bore Dimensions d₁ / d₂

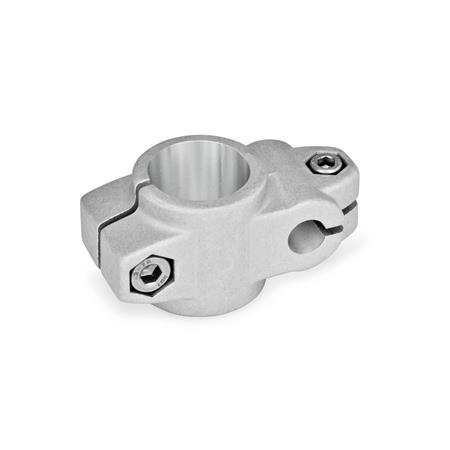

GN 133 Two-Way Connector Clamps

Two Way Connector Clamps GN 133 thumbnail

Identification No.

2	With 2 stainless steel socket cap screws DIN 912

Show filter

d₁ Bore	d₂ Bore						k₁ Clamping length	k₂ Clamping length	l₁	l₂	l₃	m	z₁ Screw location	z₂ Screw location	Accessory Recom. hand lever GN 911 for z₁ l₄	for z₂ l₄

B 20	B 10	B 12	B 14	B 15	B 16	B 18	40	36	81,5	40	26	27	M8-25	M6-20	-	63
B 25	B 10	B 12	B 14	B 15	B 16	B 18	40	36	81,5	40	26	27	M8-25	M6-20	63 \| 78	63
B 30	B 10	B 12	B 14	B 15	B 16	B 18	40	36	81,5	40	26	27	M8-25	M6-20	63 \| 78	63
B 40	B 20	B 25	B 30	-	-	-	65	59	122	65	40	45	M10-50	M8-25	92	78
B 42	B 20	B 25	B 30	-	-	-	65	59	122	65	40	45	M10-50	M8-25	78 \| 92	78
B 45	B 20	B 25	B 30	-	-	-	65	59	122	65	40	45	M10-50	M8-25	78 \| 92	78
B 48	B 20	B 25	B 30	-	-	-	65	59	122	65	40	45	M10-50	M8-25	78 \| 92	78
B 50	B 20	B 25	B 30	-	-	-	65	59	122	65	40	45	M10-50	M8-25	78 \| 92	78

Filter combination produces no result.

Specification

Aluminum

Powder coated
Black, RAL 9005, textured finishSW
Plain, Matte shot-blastedBL

Socket cap screws DIN 912
Stainless steel AISI 304

Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring

Stainless Steel Characteristics

RoHS

Accessory

Adjustable Hand Levers GN 911

Information

The clamping bores of two-way connector clamps GN 133 are mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.

At the screw locations z₁ / z₂, the socket cap screws reduce the bore cross-section for clamping.

For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.
