with Hardened Pivot
GN 913.2 Grub Screws
Type
| A | With semi-spherical pivot |
| B | Pointed pivot |
| d1 | l1 Nominal length | d2 | l2 | l3 | r | A/F | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| M 5 | 8 | 12 | 16 | 20 | - | 3 | 1 | 0,5 | 2,5 | 2,5 |
| M 6 | 12 | 16 | 20 | 25 | - | 4 | 1,8 | 0,8 | 3 | 3 |
| M 8 | 12 | 16 | 20 | 25 | 32 | 6 | 2,5 | 1 | 5 | 4 |
| M 10 | 16 | 20 | 25 | 32 | 40 | 8 | 3,5 | 1,5 | 6 | 5 |
Filter combination produces no result.
Specification
Information

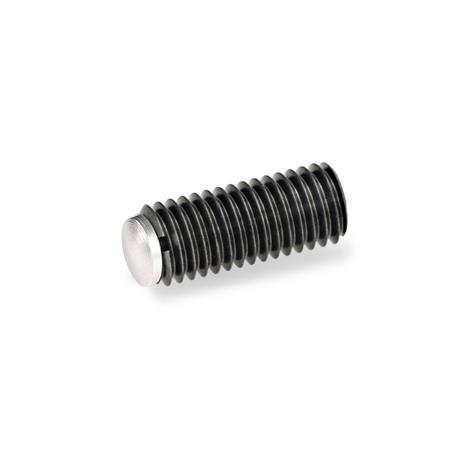

Grub screws GN 913.2 with hardened spherical pivot (type A) are used in such cases where point contact is required. They are a lower cost alternative to ball point screws GN 605.
Grub screws with hardened pointed pivot (type B) offer an alternative form of finish.
| How to order |
| ||||||
GN 913.2-M6-20-B |
