Aluminum, up to 180 °C

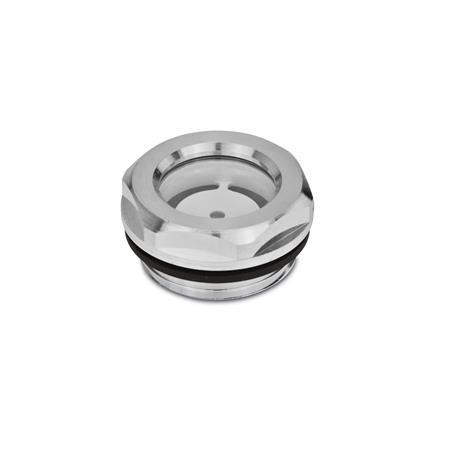

GN 743.1 Oil Sight Glasses

Type

A	with reflector, plain
AS	with reflector, black anodized
B	without reflector, plain
BS	without reflector, black anodized

Show filter

d₁	d₂			d₃	l₁	l₂	s

7	G 1/4	M 14 x 1,5	-	20	7,5	6,5	18
11	G 3/8	M 16 x 1,5	-	22	8	7,5	20
14	G 1/2	M 20 x 1,5	-	26	8,5	7,5	23
18	G 3/4	M 26 x 1,5	M 27 x 1,5	32	9	8	30
24	G 1	M 33 x 1,5	-	40	11	8,5	36
32	G 1 1/4	M 40 x 1,5	M 42 x 1,5	50	12	9	46
32	G 1 1/2	-	-	60	13	9	55

Filter combination produces no result.

Specification

Body
Aluminum

Type A and B
Fine turned, plain
Type AS and BS
Fine turned, black anodized

Reflector
Technopolymer (Polysulfon)

Sight glass
Security glass (ESG)
Temperature resistant up to 180 °C

Seals
Rubber FPM (Viton^®)
Identification by not black finish of the seal

Elastomer Characteristics

Plastic Characteristics

RoHS

Accessory

Mounting Nuts GN 7430

On request

EPDM sealing

Information

Oil sight glasses GN 743.1 offer a sight glass of high stability and scratch proof. The seal is achieved with an O-ring on the periphery and not on the face edge of the glass. Leak tightness is therefore not affected by axial pressures.

The outside diameter of these oil sight glasses with recessed hexagon is chosen to match mounting holes for tube connections according to DIN 3852.

The seal is housed in a groove and it can therefore not be lost. In addition, this groove prevents the seal from being extruded when the sight glass is tightened.

Oil sight glasses GN 743.1 can also be used on pressurised tanks. Tests regarding maximum pressure are available.

Assembly instruction:
For mounting on walls of less than 4 mm thickness please use a mounting nuts GN 7430.
