Operation with Socket Key

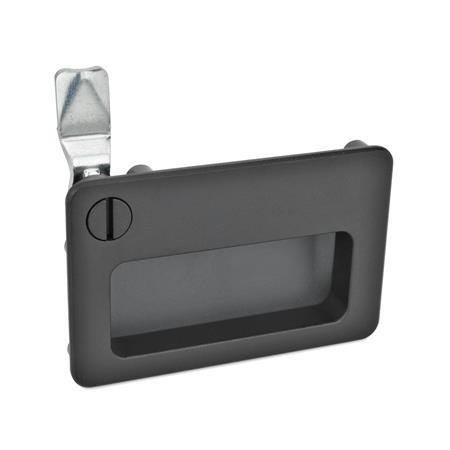

GN 115.10 Latches with Gripping Tray
Type
| DK | With triangular spindle |
| VK7 | With square spindle |
| VK8 | With square spindle |
| SCH | With slot |
| VDE | With double bit |
Identification no.
| 1 | Operation, in drawn position, at the top left |
| 2 | Operation, in drawn position, at the top right |
| Latch distance A | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 6 | 8 | 10 | 13 | 14 | 16 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | 32 | 34 | 36 | 38 | 40 | 42 | 45 | 50 |
Filter combination produces no result.
Specification
Front frame
Zinc die casting
Powder coated
Black, RAL 9005, textured finishSW
Silver, RAL 9006, textured finishSR
Tray
Plastic
Operating part
Zinc die casting
Other parts
Steel
Zinc plated, blue passivated
RoHS
Zinc die casting
Powder coated
Black, RAL 9005, textured finishSW
Silver, RAL 9006, textured finishSR
Tray
Plastic
- Black gray (for SW)
- Light gray (for SR)
Operating part
Zinc die casting
- Powder coated, black (for SW)
- Chrome-plated (for SR)
Other parts
Steel
Zinc plated, blue passivated
RoHS
Accessory
Socket keys GN 119.2Information
Latches with gripping tray GN 115.10 are used in applications which require a moulded recess in addition to the latching mechanism, e.g. if operating elements are not allowed to protrude for reasons of space.
A rotary movement limited to 90°, of the three-edged wedge in Type DK, moves the latch behind the frame, with the run-up bevels at the latch making it easier to close the door.
Latches with different cranks cover a latch distance A from 4 to 50 mm.
Latches with gripping tray GN 115.10 are supplied with loosely enclosed latch.
| How to order |
| ||||||||
GN 115.10-SCH-20-2-SR |
