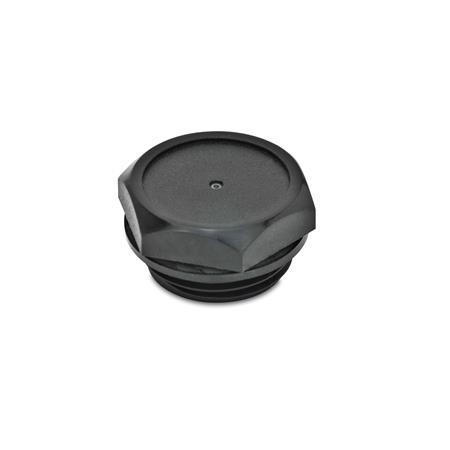

Plastic, with Flat Seal
GN 745 Threaded Plugs
ELESA Original design TN.

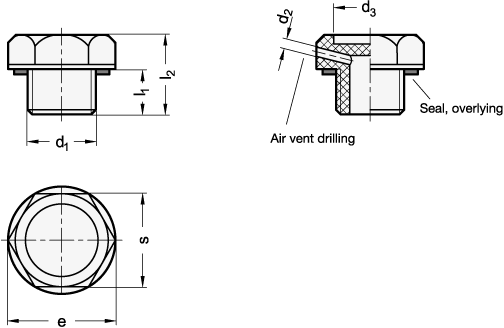

Coding
| 1 | Without vent drilling |
| 2 | With vent drilling |
| d1 | d2 Vent drilling | d3 | e ≈ | l1 | l2 | s | |||
|---|---|---|---|---|---|---|---|---|---|
| G 1/8 | M 10 x 1,5 | M 12 x 1,5 | - | 2 | 15 | 22 | 9 | 16 | 19 |
| G 1/4 | M 14 x 1,5 | - | - | 2 | 15 | 22 | 9 | 17 | 19 |
| G 3/8 | M 16 x 1,5 | - | - | 2 | 17,5 | 25,5 | 9 | 18 | 22 |
| G 1/2 | M 18 x 1,5 | M 20 x 1,5 | - | 2 | 21 | 32 | 11 | 20 | 27 |
| G 3/4 | M 22 x 1,5 | M 25 x 1,5 | M 26 x 1,5 | 2 | 25 | 37 | 12 | 22 | 32 |
| G 1 | M 35 x 1,5 | - | - | 2 | 31 | 44 | 13 | 23 | 38 |
| G 1 1/4 | M 40 x 1,5 | - | - | 2 | 38 | 53,5 | 14 | 26 | 46 |
| G 1 1/2 | - | - | - | 2 | 46 | 63,5 | 15 | 28 | 55 |
Filter combination produces no result.
Specification
Plastic (Polyamide PA)
Seal
Rubber NBR (Perbunan®)
RoHS
- Glass fiber reinforced
- Temperature resistant up to 100 °C
- Black, matte finish
Seal
Rubber NBR (Perbunan®)
RoHS
Accessory
Aluminum Disks GN 745.1 (neutral)Aluminum Disks GN 747.1 (with Re-Fill Symbol)
Aluminum Disks GN 740.1 (with Drain Symbol)
Information
Suitable for threaded plugs GN 745 are self-adhesive, matt anodized aluminum disks (0.3 mm thick) which can be supplied in sizes d3 = 15 to 31 .
| How to order |
| ||||
GN 745-G3/4-1 |
