Narrow Shape

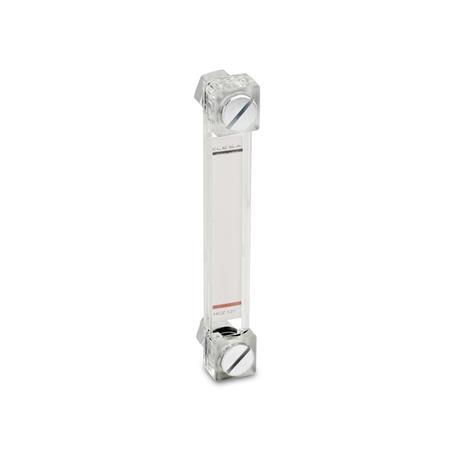

GN 650.4 Oil Level Indicators

ELESA Original design HCZ / HCZ-VT Info

Type

A	Without thermometer, without protection frame
B	With thermometer, without protection frame
AK	Without thermometer, without protection frame, with plastic screw
BK	With thermometer, without protection frame, with plastic screw
AS	Without thermometer, with protection frame
BS	With thermometer, with protection frame

Show filter

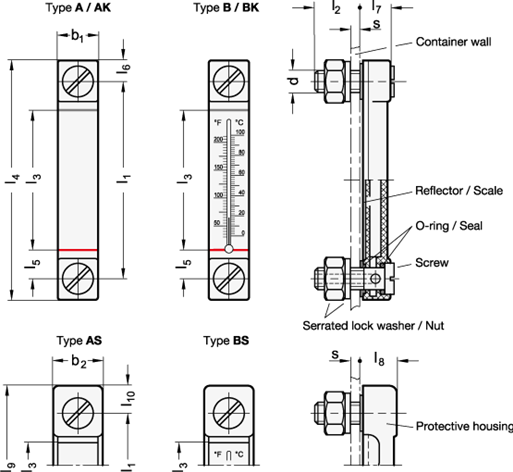

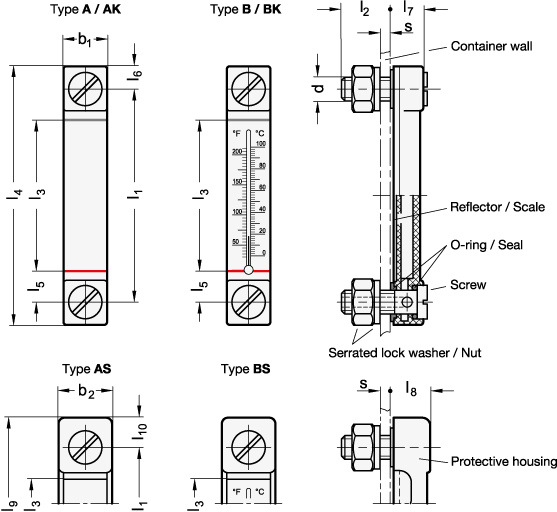

l₁	b₁	b₂	d Type A / AS Type B / BS	Type AK Type BK	l₂	l₃	l₄	l₅	l₆	l₇	l₈	l₉	l₁₀	s ≈ max. Wall thickness	Thermometer scale °C	°F

76	22	27	M 10	M 12	23	40	99	18	11,5	15	17,5	105	14,5	12	20 ... 100	68 ... 210
127	22	27	M 12	M 12	23	80	150	23	11,5	15	17,5	156	14,5	10	0 ... 100	32 ... 210
254	22	27	M 12	M 12	23	203	278	23	12	15	17,5	284	15	10	0 ... 100	32 ... 210

Filter combination produces no result.

Specification

Body plastic
Crystal-clear Polyamide (PA 6-T)

Ageing resistant
High mechanical strength
Temperature restistant up to 90 °C
Solvent resistant,
but not suitable for alcohol
Avoid contact with hot water

Protective housing
Plastic (Polyamide PA-HP)

Glass fiber reinforced
Black, matte finish

Reflector
Aluminium

White lacquered,
With two black marking lines resp. scale

O-rings
Rubber NBR (Perbunan^®)

Set screw, hexagon nut, serrated lock washer

Type A / B / AS / BS:
Steel, zinc plated, blue passivated
Type AK /BK: Plastic (PA)
Glass fiber reinforced, black matte finish
Tightening torque max. 6 Nm

Elastomer Characteristics

Plastic Characteristics

RoHS

Information

A special feature of oil level indicators GN 650.4 is their reduced dimension. The liquid level is visible even from side positions.

The polyamide body consists of two parts which are ultrasonically welded together. The oil level indicators are individually air pressure tested for leaks at 3 bar.

All oil level indicators GN 650.4 can also be used on tanks which are pressurised. Pressure test results regarding resistance under pressure are available.

As a contrast screen, a white lacquered aluminium strip is used which shows marking lines or temperature scale.

The scale is placed behind and outside the liquid column as a protective measure.

The protection frame is designed to increase the resistance of the indicator by absorbing all shocks. The protection frame is mounted to the indicator.
