with Operating Elements, not Lockable
GN 115 Latches
Type
| SG | With star knob |
| SK | With wing knob |
| ST | With T-Handle |
| RG | With knurled knob GN 7336 |
| KG | With wing knob |
| HG | With lever |
| Latch distance A | d Type SG, RG, KG, HG | Type SK, ST | h Type SG, RG, KG, HG | Type SK, ST | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 8 | 13 | 16 | 20 | 24 | 28 | 32 | 36 | 40 | 45 | 28 | 32 | 4 | 6 |
| 6 | 10 | 14 | 18 | 22 | 26 | 30 | 34 | 38 | 42 | 50 | 28 | 32 | 4 | 6 |
Filter combination produces no result.
Specification
Lock housing
Zinc die casting
Housing collar
Chrome plated
Operating elements
Plastic (Polyamide PA)
Black, matte finish
Cover cap (Type RG, KG, HG, LG)
Plastic (Polyamide PA)
Light gray, matte finish
Other parts
Steel zinc plated, blue passivated
Protection class IP65
RoHS
Zinc die casting
Housing collar
Chrome plated
Operating elements
Plastic (Polyamide PA)
Black, matte finish
Cover cap (Type RG, KG, HG, LG)
Plastic (Polyamide PA)
Light gray, matte finish
Other parts
Steel zinc plated, blue passivated
Protection class IP65
RoHS
Information

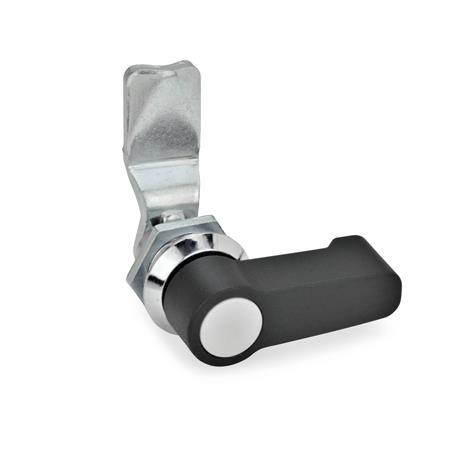

Latches GN 115 lock by a turning operation limited to 90° which moves the locking behind the door frame. The bevels of the latch ease the closing of the door.
Latch arms are available with different bend angles to cover a latch arm distance A from 4 to 50 mm.
Latches GN 115 are supplied with loosely enclosed latch.
| How to order |
| ||||
GN 115-SG-20 |
