with Plastic Knob, Pin AISI 630

GN 113.6 Stainless Steel Ball Lock Pins,

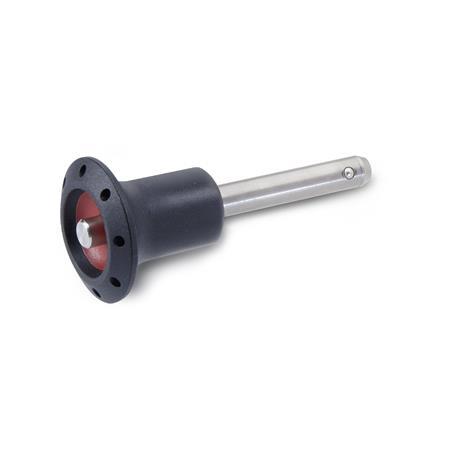

Stainless Steel Ball Lock Pins GN 113.6 thumbnail

Stainless Steel Ball Lock Pins GN 113.6 sketch

Show filter

d₁ -0,04/-0,08	l₁ +0,6															d₂	d₃	d₄	l₂ ±1	l₃ -0,2	Location bore H11

5	10	15	20	25	30	35	40	45	50	60	70	80	-	-	-	5,5	30	16	6	26	5
6	10	15	20	25	30	35	40	45	50	60	70	80	-	-	-	7	30	16	7,1	26	6
8	10	15	20	25	30	35	40	45	50	60	70	80	90	100	-	9,5	35	19	8,2	32,5	8
10	15	20	25	30	35	40	45	50	60	70	80	90	100	110	120	12	35	19	9,6	32,5	10
12	20	25	30	35	40	45	50	60	70	80	90	100	110	120	-	14,5	42	25	10,6	39	12
16	30	35	40	45	50	60	70	80	90	100	110	120	130	140	150	19	42	25	14	39	16

Filter combination produces no result.

Specification

Plunger pin
Stainless steel AISI 630
Precipitation-hardened

Knob
Plastic (Polyamide PA)

Black-gray/ red
Temperature resistant 80 °C

Balls
Stainless steel AISI 420C

Pressure spring
German Material No. 1.4565

Load Capacity of Ball Lock Pins / Locking Pins

Application Video Locking Pins with Ball Lock

ISO Fundamental Tolerances

Stainless Steel Characteristics

Plastic Characteristics

RoHS

Accessory

Ball Chains GN 111 / GN 111.5

Retaining Cables GN 111.2

Spiral Retaining Cables GN 111.4

Information

Stainless steel ball lock pins GN 113.6 are used for quick fixing, connecting and locking of various parts and workpieces. A typical application is locating pins which have often to be removed and installed again.

By pressing the spring loaded push button both balls are unlocked and by releasing it, the balls are locked again.

Ball lock pins GN 113.6 have an extreme load capacity, the pin is made of heavy duty, hardened and highly abrasion-resistant stainless steel.

The technical appendix contains the load capacities for the double-sided shearing resistance (breaking strength).
