Stainless Steel, with 4 Mounting Holes

GN 146.15 Flanged Linear Actuator Connectors

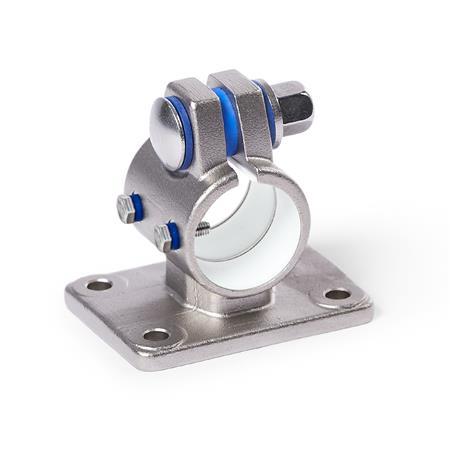

Flanged Linear Actuator Connectors GN 146.15 thumbnail

Flanged Linear Actuator Connectors GN 146.15 sketch

Identification no.

4	With stainless steel cap nut DIN 917

Type

A	Without seals
B	With seals

Show filter

d₁ Bore with sleeve bearing	b	d₂	d₃	d₄ Mounting screws on the drive key	k Clamping length	l₁	m	t	x₁	x₂	y₁	y₂	z Screw location	Accessory Recom. hand lever GN 911.3 for z l₂

G 30	22	6,5	37	M 4	40	66	30	7	52	35	70	53	M 8	63 \| 78
G 50	30	10,7	60	M 6	65	98,5	50	9	92	62	128	98	M 10	78 \| 92

Filter combination produces no result.

Specification

Stainless steel AISI CF-8
Matte shot-blasted

Sleeve bearing
Plastic (PTFE)

Carriage bolt DIN 603
Stainless steel

Cap nuts DIN 917 / Washers
Stainless steel

Seals

Sealing disks
Plastic (Polyacetal POM)
Spacer ring
Silicon, 40 ... 60 Shore A

Stainless Steel Characteristics

Plastic Characteristics

RoHS

Accessory

Adjustable hand levers GN 911.3

Information

Flanged linear actuator connectors GN 146.15 are based on flanged connector clamps. The additionally provided mounting holes are used to connect to the drive key of a linear actuator. Bores with the designation G are equipped with sleeve bearings.

With the screw location z, the play of the guide bores d₁ can be adjusted or the linear actuator connectors can be clamped after adjustment. Type B is equipped with seals at the screw locations.

For quick clamping without tools, the cap nut can be replaced by the adjustable hand levers GN 911.3 listed in the table as accessories.
