Material NBR / EPDM (UL-certified)

GN 2180 Edge Protection Seal Profiles

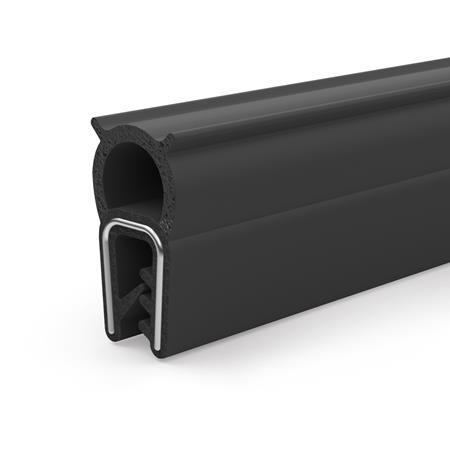

Edge Protection Seal Profiles GN 2180 thumbnail

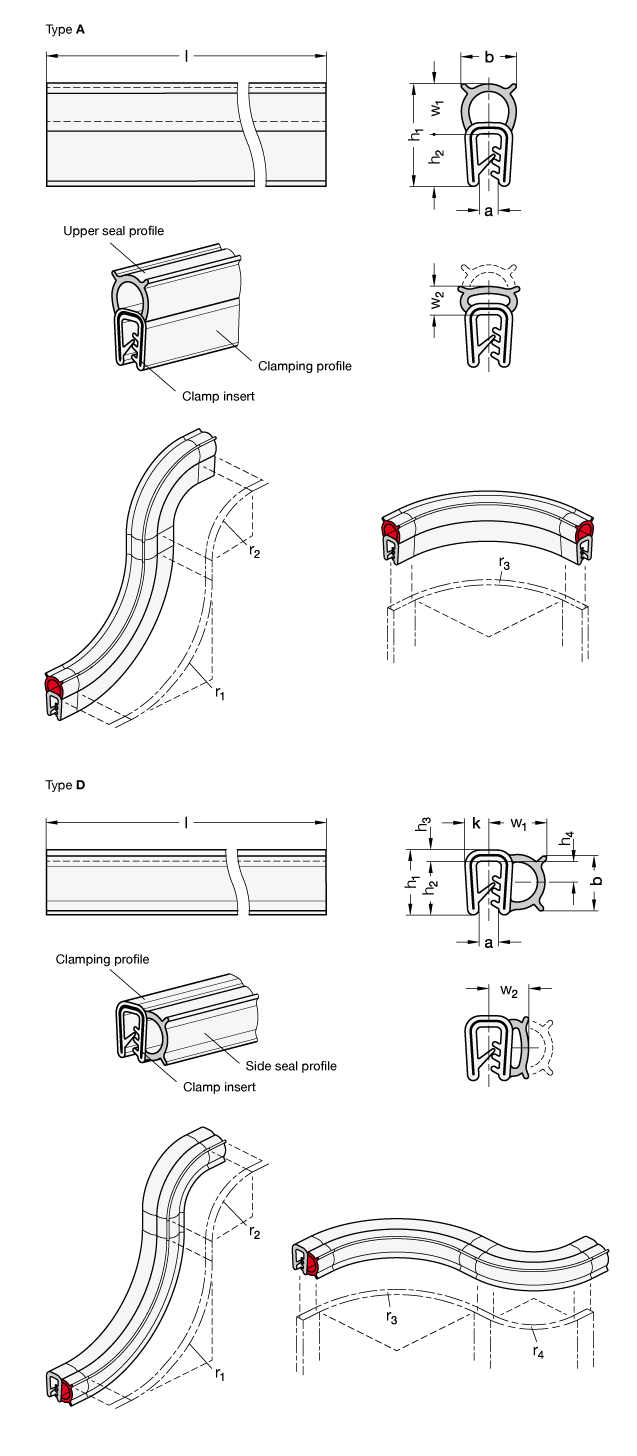

Edge Protection Seal Profiles GN 2180 sketch

Type

A	Upper seal profile
D	Side seal profile

Show filter

h₁ Type A	h₁ Type D	Length l in meter		a Clamping area	b	h₂	h₃	h₄	k	r₁	r₂	r₃	r₄	w₁	w₂ up to 50% permissible deformation

15,5	-	20	50	0,8 - 2,5	8,5	9	-	-	-	80	50	20	-	6,5	5
20,5	-	20	50	1 - 3,5	11	10,5	-	-	-	90	50	30	-	10	7
-	11,5	20	50	0,8 - 2,5	8,75	9	2,5	3,75	4	30	40	80	40	8,5	6,75
-	13	20	50	1 - 3,5	11	10,75	2,25	4,5	4,75	40	50	100	80	11,25	8,75

Filter combination produces no result.

Specification

Clamping profile / Sealing profile Ethylene propylene diene rubberEPDM

Black
Clamping profile hardness 65 ±5 Shore A
Sealing profile hardness 25 ±5 Shore A
Temperature resistant -40 °C to 100 °C

Acrylonitrile butadiene rubberNBR
(only for sizes h₁ = 20,5 and 13)

Black
Clamping profile hardness 60 ±5 Shore A
Sealing profile hardness 25 ±5 Shore A
Temperature resistant -30 °C to 100 °C

Clamp insert
Steel wire polyester clamping band

https://www.youtube.com/watch?v=8kiMpb6fjNg

Application examples

General information

Technical information

Construction example

Elastomer Characteristics

UL 50 certification

UL 94 HB-certification

RoHS

Information

Edge protection seal profiles GN 2180 can be used to seal doors, covers and hatches. The profiles are pressed by hand onto the front of metal sheets and plates. The embedded clamp insert prevents detachment. Glue or other adhesives are not required.

When assembled, the profile should deform slightly according to w₂. This ensures an optimal seal. Adherence to the guideline placement radii (r₁... r₄) is recommended in order to ensure a tight profile seal and to make assembly easier.

The NBR profiles are recommended for use in cases where contact with fuels, oils or coolants can occur.

EPDM profiles are certified according to UL 50 and UL 94-HB and are therefore approved for the US-American and the Canadian market.
