with Rest Position

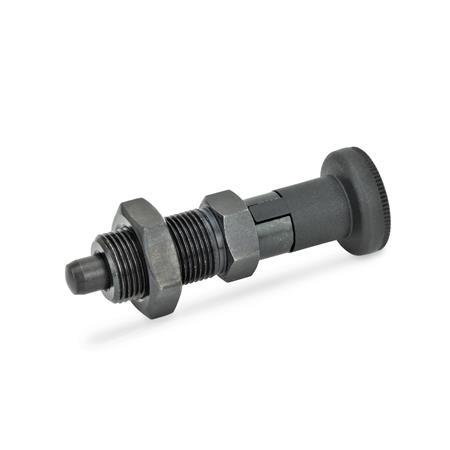

GN 617.1 Indexing Plungers, steel, blackened
Type
| A | Without lock nut |
| AK | With lock nut |
| d1 Plunger -0,02/-0,05 Bore H7 | d2 | d3 | e | l1 ≈ | l2 | l3 | l4 | l5 min. | A/F | Spring load in N ≈ initial | end |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 5 | M 10 x 1 | 21 | 13,8 | 51 | 5 | 17 | 5 | 15 | 12 | 7 | 17 |
| 6 | M 12 x 1,5 | 25 | 16,2 | 61 | 6 | 20 | 6 | 17 | 14 | 9 | 24 |
| 8 | M 16 x 1,5 | 31 | 21,9 | 75,5 | 7 | 26 | 8 | 23 | 19 | 11 | 30 |
| 10 | M 20 x 1,5 | 31 | 25,4 | 91 | 10 | 33 | 10 | 30 | 22 | 19 | 45 |
Filter combination produces no result.
Specification
Steel
Knob
RoHS
- Blackened
- Plunger pin hardened
Knob
- Plastic (Polyamide PA)
- Black, matte finish
- Not removable
RoHS
On request
With inch threads
Information
Indexing plungers GN 617.1 with rest position are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.
see also...
| How to order |
| ||||
GN 617.1-6-A |
