Aluminum / Perspex, without Thread
GN 537 Oil Sight Glasses, Resistant up to 80°C
Type
| A | Without oil level marks |
| B | With oil level marks |
| d1 Window glass | d2 Bore-Ø | b min. | d3 | d4 | e ±0,1 | h | l1 | l2 | Code no. Pin key for installation |
|---|---|---|---|---|---|---|---|---|---|
| 16 | 20 | 9 | 25 | 2,2 | 21 | 5 | 15 | 3,5 | GN 537.1-21 |
| 22 | 28 | 10 | 35 | 3 | 30 | 6 | 15 | 4,5 | GN 537.1-30 |
| 32 | 38 | 12 | 45 | 3 | 40 | 8 | 18 | 5,5 | GN 537.1-40 |
| 50 | 58 | 14 | 64 | 3 | 58,5 | 10 | 22 | 5,5 | GN 537.1-58,5 |
Filter combination produces no result.
Specification
Ring nut
Aluminum
Window glass
Perspex (PMMA)
Temperature resistant up to 80 °C
Seal
Rubber NBR (Perbunan)
Reflector
Plastic
White, with red oil level marks
RoHS
Aluminum
Window glass
Perspex (PMMA)
Temperature resistant up to 80 °C
Seal
Rubber NBR (Perbunan)
Reflector
Plastic
White, with red oil level marks
RoHS
Accessory
Pin Key for Installation GN 537.1(code no. see table)
Information

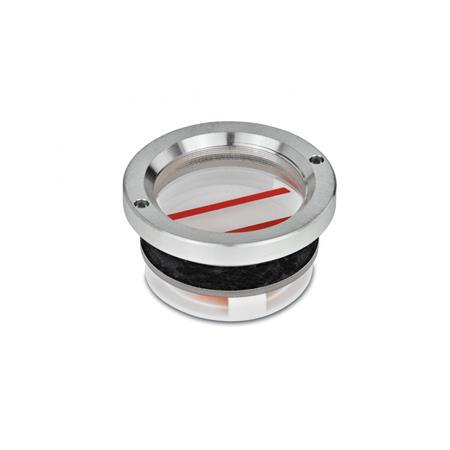

This oil sight glass GN 537 does not require a thread.
The oil sight glass is inserted into the bore d2 to H11. By simply tightening the ring nut using the pin key the seal is pressed against the contact surface which, at the same time, will hold the sight glass in position. For removal reverse the procedure.
Their application is limited to non-pressurised or only slightly pressurised tanks.
| How to order |
| ||||||
GN 537-32-38-B |
