Stainless Steel, for Two-Way Axis System

GN 131.2 Two-Way Linear Actuator Connectors

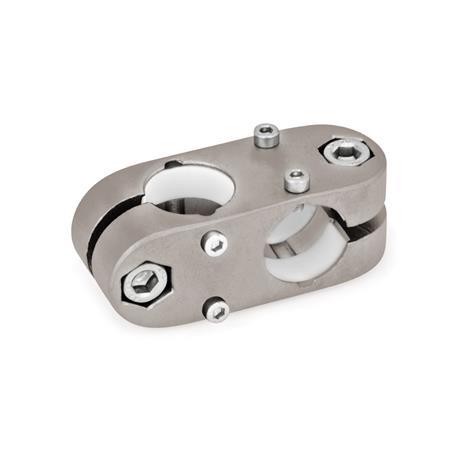

Two Way Linear Actuator Connectors GN 131.2 thumbnail

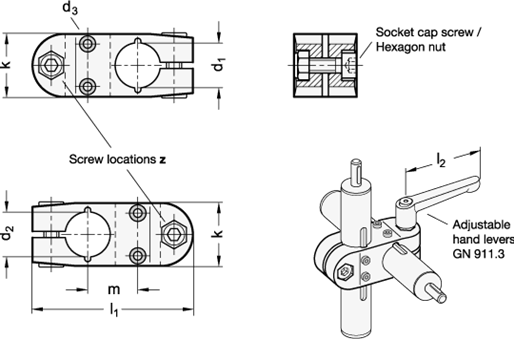

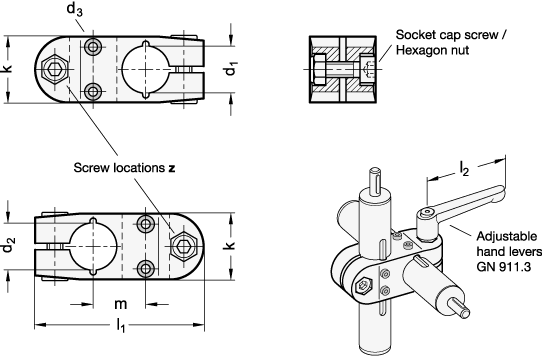

Two Way Linear Actuator Connectors GN 131.2 sketch

Identification no.

2	With 2 stainless steel socket cap screws DIN 912

Show filter

d₁ - d₂ with slide insert	d₃ Mounting screws on the drive key	k Clamping length	l₁	m	z Screw locations	Accessory recom. lever for z GN 911.3 l₂

G 18 - G18	M 3	25	64	20	M6-20	45	63

Filter combination produces no result.

Specification

Stainless steelNI AISI CF-8

Matte shot-blasted
Only with sleeve bearing

Sleeve bearing
Plastic (PTFE)

Socket cap screws DIN 912
Stainless steel AISI 304

Hexa nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring

Stainless Steel Characteristics

Plastic Characteristics

RoHS

Accessory

Adjustable Hand Levers GN 911.3

Information

Two-way linear actuator connectors GN 131.2 are based on two-way connector clamps. The additionally provided fastening holes are used to connect to the follower of a linear actuator. Bores with the designation “G” are equipped with slide inserts.

The play of the guide bores d₁ / d₂ can be adjusted via the screw locations z, or the linear actuator connectors can be clamped after adjustment.

For quick clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 / GN 911.3 listed in the table as accessories.

How to order
