Operation with Socket Key
GN 115.8 Hook-Type Latches
Type
| DK | With triangular spindle |
| VK7 | With square spindle |
| VK8 | With square spindle |
| SCH | With slot |
| VDE | With double bit |
Version of the hook
| H1 | Pivoting radius R=28 |
Identification no.
| 1 | Without latch bracket |
| 2 | With latch bracket |
| Hook distance A | d | h |
|---|---|---|
| 18 | 28 | 4 |
Filter combination produces no result.
1) Dimensions of the latch bracket see PDF for "Construction and assembly instructions"
Specification
Lock housing
Zinc die casting
Housing collar
Other parts
Steel zinc plated, blue passivated
RoHS
Zinc die casting
Housing collar
- Chrome platedCR
- Powder coated
Black, RAL 9005, textured finishSW
Other parts
Steel zinc plated, blue passivated
RoHS
Accessory
Socket Keys GN 119.2Protective Caps GN 120
Opening Handles GN 120.1
On request
Hook-type latches with other hook distance A
Hook with other pivoting radius R
Hook with other pivoting radius R
Information

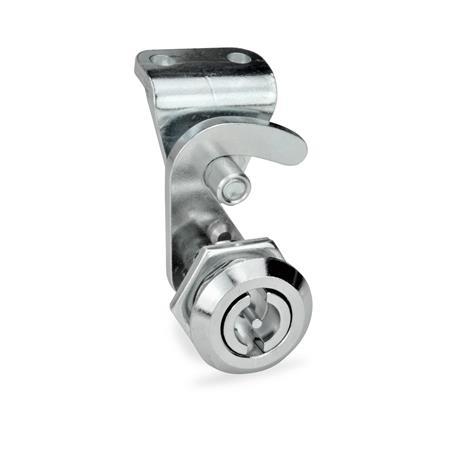

Hook-type latches GN 115.8 with hook and latch bracket are mainly used for sliding doors and flaps. The locking action is in radial direction to the axis of rotation, resulting in a wide variety of different uses.
Hook-type latches GN 115.8 are supplied with loosely enclosed hook.
| How to order |
| ||||||||||
GN 115.8-VDE-18-H1-CR-1 |
