with Threaded Stud
GN 409.1 Positioning Elements

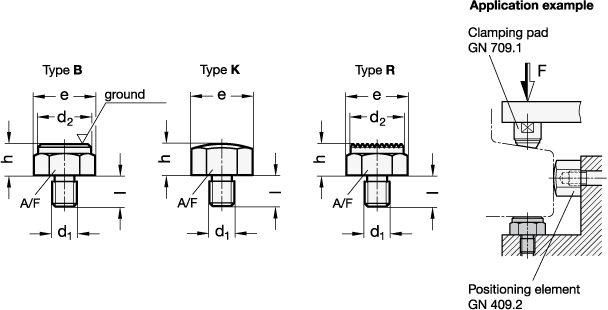

Form
| B | Smooth contact face |
| K | Spherical contact face |
| R | Serrated contact face |
| h Type B: ±0,01 Type K / R: ±0,1 | d1 | d2 Type B/R | Length l | A/F | e Width across corners |
|---|---|---|---|---|---|
| 10 | M 8 | 17 | 10 | 17 | 19,4 |
| 10 | M 10 | 19 | 12 | 19 | 21,9 |
| 10 | M 12 | 22 | 14 | 22 | 25,2 |
| 15 | M 10 | 19 | 12 | 19 | 21,9 |
| 15 | M 12 | 22 | 14 | 22 | 25,2 |
| 15 | M 16 | 30 | 19 | 30 | 34,2 |
| 20 | M 16 | 30 | 19 | 30 | 34,2 |
Filter combination produces no result.
Specification
Steel
RoHS
- Case-hardened
- Blackened
RoHS
Information

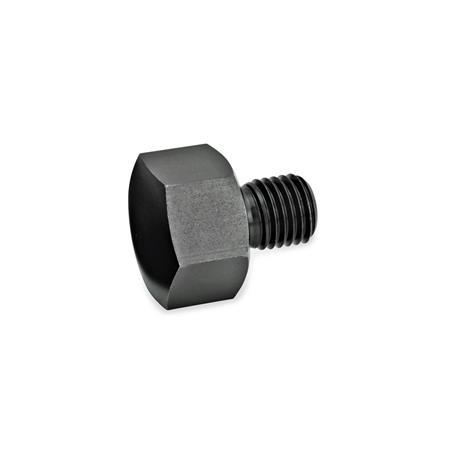

Positioning elements GN 409.1 with threaded stud are designed for use as locating plungers, stops and thrust blocks.
| How to order |
| ||||||
GN 409.1-15-M10-B |
