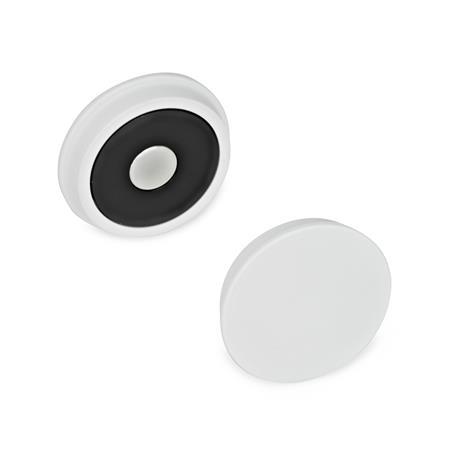

Disk-Shaped, Plastic Housing
GN 53.1 Magnets

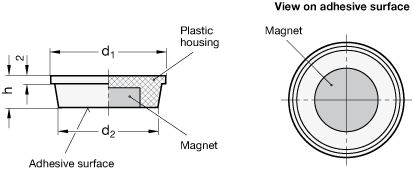

| d1 | d2 | h | Nominal adhesive forces in N |
|---|---|---|---|
| 10 | 8 | 9 | 4 |
| 18 | 14 | 8 | 10 |
| 25 | 22 | 8,5 | 14 |
| 30 | 28,5 | 8,5 | 27 |
| 36 | 32,5 | 8,5 | 35 |
| 40 | 36 | 8 | 35 |
Filter combination produces no result.
Specification
Material of the magnet:
NdFeBND
Neodymium, iron, boron
Temperature resistant up to 80 °C
Housing
Plastic
White, RAL 9003WS
Gray, RAL 7040GR
Black, RAL 9004SW
Red, RAL 3031RT
RoHS
NdFeBND
Neodymium, iron, boron
Temperature resistant up to 80 °C
Housing
Plastic
White, RAL 9003WS
Gray, RAL 7040GR
Black, RAL 9004SW
Red, RAL 3031RT
RoHS
On request
Other colors
Magnet material hard ferrite
With custom imprint
Magnet material hard ferrite
With custom imprint
Information
Magnets GN 53.1 work in combination with the flat, disk-shaped plastic housing as a system for holding documents, templates, drawings etc. that are used in technical environments.
The neodymium magnets used are characterized by a high magnetic force.
see also...
| How to order |
| ||||||
GN 53.1-ND-30-RT |
