with Adjustable Hand Lever

GN 706.4 Semi-Split Shaft Collars, Steel / Aluminum

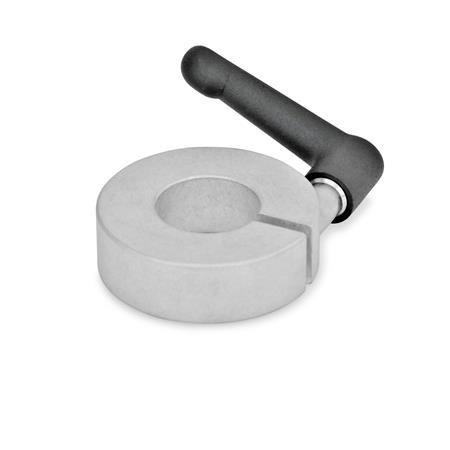

Semi Split Shaft Collars Steel Aluminum GN 706.4 thumbnail

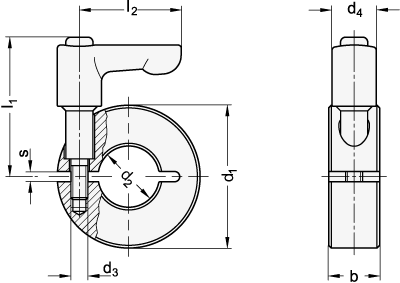

Semi Split Shaft Collars Steel Aluminum GN 706.4 sketch

Show filter

d₁	d₂ H10 recommended shaft tolerance h11		b ±0,2	d₃	d₄	l₁	l₂	s

32	B 14	-	11	M 4	13	37	30	2,1
36	B 15	B 16	13	M 5	13	38,5	30	2,1
42	B 18	B 20	15	M 5	13	41	30	3
48	B 22	B 25	15	M 5	13	43	45	3
55	B 28	B 30	15	M 6	13	45	45	3
60	B 32	B 35	15	M 6	13	46,5	45	4
65	B 40	-	15	M 6	13	47,5	45	4

Filter combination produces no result.

Specification

SteelST
Sintered steel (Distaloy AB)
Black oxidised with vapor

AluminumAL
Tumbled

Adjustable hand levers

Zinc die casting
Powder coated
Black RAL 9005, textured finish
Screw insert and retaining screw
Stainless steel AISI 303

ISO Fundamental Tolerances

Stainless Steel Characteristics

Highlights / Product information shaft collars

RoHS

Information

Semi-split shaft collars GN 706.4 can safely and simply be clamped by reducing the slot height by using an adjustable hand lever and thus they act, for instance, like an end stop.

This version offers great advantages especially for applications that demand new positions of the shaft collar.

The thread d₃ for sizes d₁ = 32 and 36 is designed as a through hole; for sizes d₁ = 42 and larger, it is designed as blind hole.
