Disk-Shaped, with Hook / with Eyelet

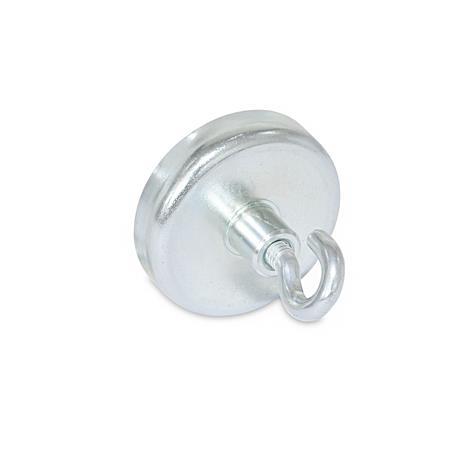

GN 50.6 Retaining Magnets

Type

A	With hook
B	With eyelet

Show filter

d₁	d₂ ±1 Type A	Type B	d₃	h₁ ±2 Type A	Type B	h₂	Nominal magnetic forces in N

16	10	10	2,5	24,5	24,5	4,5	18
20	10	10	2,5	28	28	6	30
25	13,5	12,5	3,5	30,5	30,5	7	40
32	13,5	12,5	3,5	30,5	30,5	7	80
36	13,5	12,5	3,5	32	32	7,7	100
40	13,5	12,5	3,5	30,5	30,5	8	125
47	13,5	12,5	3,5	34	34	9	180
50	13,5	12,5	3,5	32	35	10	220
57	13,5	12,5	3,5	35	35	10,5	280
63	13,5	12,5	3,5	36	38	14	350
80	23	20	5,5	57,5	51,5	18	600

Filter combination produces no result.

Specification

Housing / hook / eyelet
Steel, zinc plated

Material of the magnet
Hard ferriteHF
Temperature resistant up to 200 °C

RoHS

Accessory

Holding Disks GN 70

Adhesive Disks GN 70.1

Rubber Caps GN 70.2

Information

Retaining magnets GN 50.6 are combined with the steel housing and the plastic ring into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.
