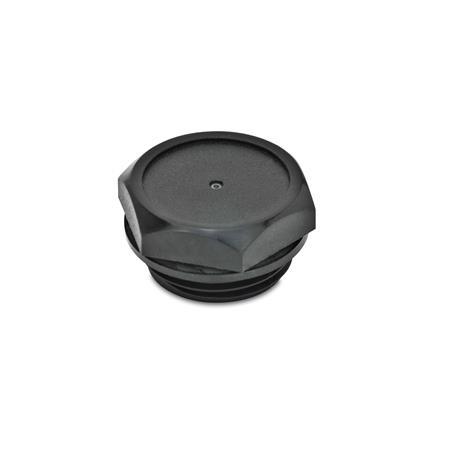

Plastic, with O-Ring
GN 745.2 Threaded Plugs
ELESA Original design TNR.
Coding

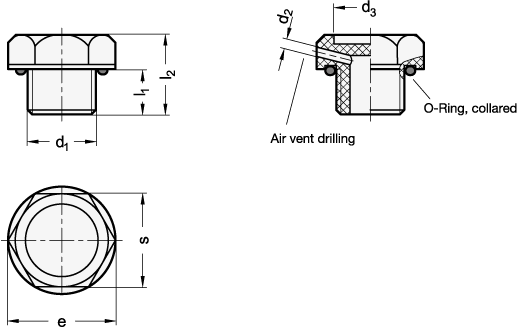

| 1 | Without vent drilling |
| 2 | With vent drilling |
| d1 | d2 Vent drilling | d3 | e ≈ | l1 | l2 | s |
|---|---|---|---|---|---|---|
| G 1/4 | 2 | 15 | 22 | 9 | 17 | 19 |
| G 3/8 | 2 | 17,5 | 25,5 | 9 | 18 | 22 |
| G 1/2 | 2 | 21 | 32 | 11 | 20 | 27 |
| G 3/4 | 2 | 25 | 37 | 12 | 22 | 32 |
| G 1 | 2 | 31 | 44 | 13 | 23 | 38 |
| G 1 1/4 | 2 | 38 | 53,5 | 14 | 26 | 46 |
| G 1 1/2 | 2 | 46 | 63,5 | 15 | 28 | 55 |
Filter combination produces no result.
Specification
Plastic (Polyamide PA)
O-ring
Rubber NBR (Perbunan®)
RoHS
- Glass fiber reinforced
- Temperature resistant up to 100 °C
- Black, matte finish
O-ring
Rubber NBR (Perbunan®)
RoHS
Information
Suitable for threaded plugs GN 745.2 are self adhesive, matt anodized aluminium discs with graphic symbols (0.3 mm thick) which can be supplied.
| How to order |
| ||||
GN 745.2-G1/2-1 |
This could also be interesting...
GN 747
Threaded Plugs with DIN-Re-Fill Symbol, Seal Overlying, Plastic
GN 742
Threaded Plugs with and without Symbols, Viton-Seal, Aluminum, Resistant up to 180°C
GN 741
Threaded Plugs with and without Symbols, Aluminum, Resistant up to 100 °C
GN 740
Threaded Plugs with DIN-Drain Symbol, Sealing Overlying, Plastic, Red
GN 745
Threaded Plugs (with flat sealing)
GN 740.1
Aluminum Disks (with drain symbol)
GN 745.1
Aluminum Disks (neutral)
GN 747.1
Aluminum Disks (with re-fill system)
