with / without Protective Cap

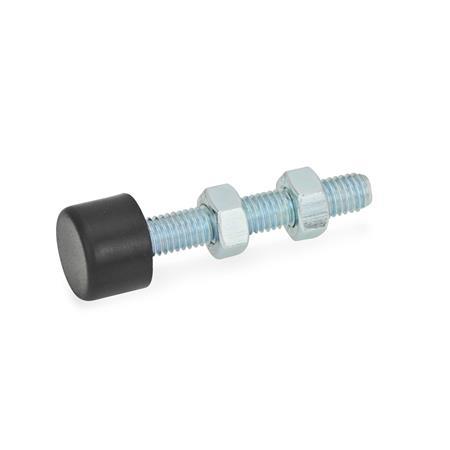

GN 807 Clamping Screws, Steel, zinc plated
Type
| A | without protective cap |
| B | with protective cap |
| d1 | l1 | d2 | h1 | h2 | l2 | m | A/F | ||
|---|---|---|---|---|---|---|---|---|---|
| M 4 | 23 | - | - | 11 | 3 | 6,5 | 2,5 | 3,2 | 7 |
| M 5 | 38 | - | - | 12,5 | 3,5 | 8 | 2,5 | 4,7 | 8 |
| M 6 | 29 | 49 | - | 15 | 4 | 10 | 4 | 5,2 | 10 |
| M 8 | 36 | 56 | 96 | 19 | 5,5 | 13 | 5,5 | 6,8 | 13 |
| M 10 | 43 | 77 | 127 | 24 | 6,5 | 16 | 7 | 8,4 | 16 |
| M 12 | 53 | 88 | 128 | 26 | 7,5 | 19 | 8,5 | 10,8 | 18 |
| M 14* | 54 | - | - | - | 9 | - | - | 12,8 | 21 |
Filter combination produces no result.
* Clamping bolts M 14 is not available as type B (with protective cap)
Specification
Hexagon head screw ISO 4017 / DIN 933
Steel
Hexagon nuts ISO 4032
Steel
Zinc plated, blue passivated
RoHS
Steel
- Property class 8.8
- Zinc plated, blue passivated
Hexagon nuts ISO 4032
Steel
Zinc plated, blue passivated
RoHS
Information
The two hexagon nuts are included part of the order.
| How to order |
| ||||||
GN 807-M8-56-B |
