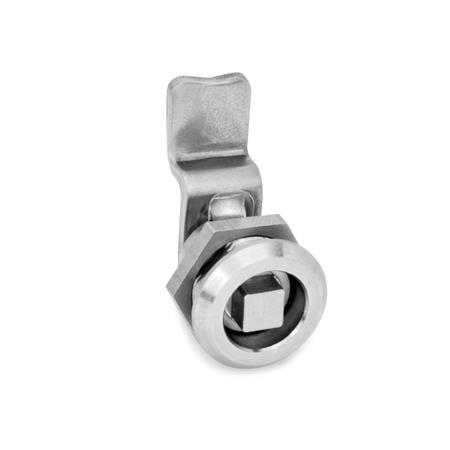

Stainless steel mini-latches GN 115.6 have smaller dimensions than standard latches GN 115, making them ideal for applications with limited space or requiring an unobtrusive appearance. Thanks to the stainless steel material, the latches are optimally suited for use in harsh environments.

They are operated with a rotation limited to 90°, which moves the latch bar into the locked position behind the frame. The bevels of the latch arm ease the closing of the door. Latch arms are available with different bend angles to cover a latch arm distance A of 7.5, 13.5 and 19.5 mm.

The stainless steel mini-latches GN 115.6 are supplied with loosely enclosed latch arm.
