with Hollow for Grip, AISI 303

GN 113.3 Stainless Steel Ball Lock Pins

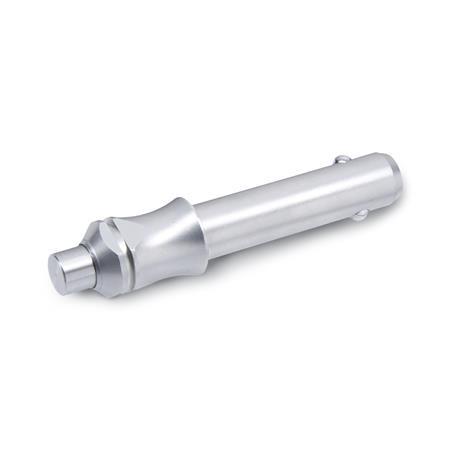

Stainless Steel Ball Lock Pins GN 113.3 thumbnail

Stainless Steel Ball Lock Pins GN 113.3 sketch

Show filter

d₁ -0,04/-0,08	l₁ +0,6															d₂	d₃	l₂ ±1	l₃ +0,2	Location bore H11

5	10	15	20	25	30	35	40	45	50	60	70	80	-	-	-	5,5	10	6	22	5
6	10	15	20	25	30	35	40	45	50	60	70	80	-	-	-	7	10	7	22	6
8	10	15	20	25	30	35	40	45	50	60	70	80	90	100	-	9,5	14	8,2	27	8
10	15	20	25	30	35	40	45	50	60	70	80	90	100	110	120	12	14	9,6	27	10
12	20	25	30	35	40	45	50	60	70	80	90	100	110	120	-	14,5	20	10,6	32	12
16	30	35	40	45	50	60	70	80	90	100	110	120	130	140	150	19	20	14	32	16
20	50	60	70	80	90	100	110	120	130	140	150	-	-	-	-	25	28	20,5	39	20
25	50	60	70	80	90	100	110	120	130	140	150	-	-	-	-	30,8	28	22	39	25

Filter combination produces no result.

Specification

Stainless steel AISI 303

Balls
Stainless steel AISI 420C

Pressure spring
Stainless steel AISI 631

Temperature resistant up to 250 °C

Load Capacity of Ball Lock Pins / Locking Pins

Application Video Locking Pins with Ball Lock

ISO Fundamental Tolerances

Stainless Steel Characteristics

RoHS

Accessory

Ball Chains GN 111 / GN 111.5

Retaining Cables GN 111.2

Spiral Retaining Cables GN 111.4

Information

Stainless steel ball lock pins GN 113.3 are used for quick fixing, connecting and locking of various parts and workpieces. A typical application is locating pins which have often to be removed and installed again.

By pressing the spring loaded push button both balls are unlocked and by releasing it the balls are locked again.

Ball lock pins GN 113.3 are renowned for their compactness. The eye ring is enclosed unmounted.

The technical appendix contains the load capacities for the double-sided shearing resistance (breaking strength).
