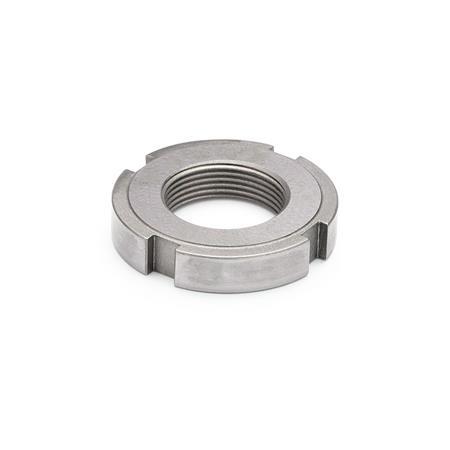

DIN 1804 Stainless Steel Slotted Locknuts
Type
| WNI | Stainless steel, not hardened |
| d1 | d2 h11 | d3 | b | h h14 | C-Spanner |
|---|---|---|---|---|---|
| M 16 x 1,5 | 32 | 27 | 5 | 7 | DIN 1810-A30-32 |
| M 20 x 1,5 | 36 | 30 | 6 | 8 | DIN 1810-A34-36 |
| M 24 x 1,5 | 42 | 36 | 6 | 9 | DIN 1810-A40-42 |
| M 28 x 1,5 | 50 | 43 | 7 | 10 | DIN 1810-A45-50 |
| M 30 x 1,5 | 50 | 43 | 7 | 10 | DIN 1810-A45-50 |
| M 35 x 1,5 | 55 | 48 | 7 | 11 | DIN 1810-A52-55 |
| M 40 x 1,5 | 62 | 54 | 8 | 12 | DIN 1810-A58-62 |
| M 45 x 1,5 | 68 | 60 | 8 | 12 | DIN 1810-A68-75 |
| M 50 x 1,5 | 75 | 67 | 8 | 13 | DIN 1810-A68-75 |
| M 55 x 1,5 | 80 | 70 | 10 | 13 | DIN 1810-A80-90 |
| M 60 x 1,5 | 90 | 80 | 10 | 13 | DIN 1810-A80-90 |
Filter combination produces no result.
Specification
Stainless steel AISI 303
RoHS
- Not hardened
- Not ground
RoHS
Accessory
C-Spanner DIN 1810(Code no. see table)
Information
On stainless steel slotted locknuts DIN 1804 the ground surface d3 stands proud and should be used as a mating surface.
The sizes M45x1,5 to M60x1,5 have 6 slots.
The official DIN standard sheet specifies additional sizes (up to M 200x3).
| How to order |
| ||||
DIN 1804-M20x1,5-WNI |
