GN 990 Stainless Steel Construction Tubes

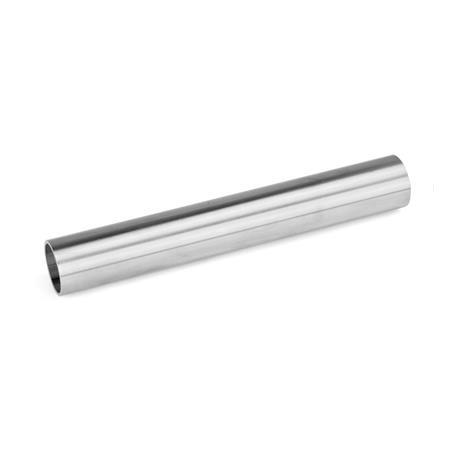

Stainless Steel Construction Tubes GN 990 thumbnail

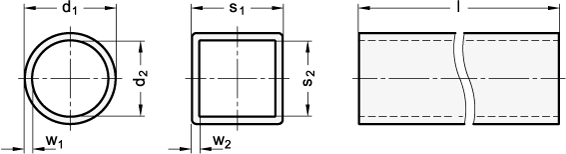

Stainless Steel Construction Tubes GN 990 sketch

Show filter

d₁ Diameter D	s₁ Square V	Length l ±0,5				d₂	s₂	w₁	w₂

D 10 ±0,1	-	200	500	1000	-	7	7	1,5	1,5
D 12 -0,2	-	200	500	1000	-	9	9	1,5	1,5
D 14 -0,2	-	200	500	1000	-	11	-	1,5	-
D 15 -0,2	-	200	500	1000	-	12	-	1,5	-
D 16 -0,2	-	200	500	1000	-	13	13	1,5	1,5
D 18 -0,2	-	200	500	1000	-	15	-	1,5	-
D 20 -0,2	V 20	200	500	1000	2000	16	16	2	2
D 25 ±0,15	V 25	200	500	1000	2000	21	21	2	2
D 30 ±0,15	V 30	200	500	1000	2000	26	26	2	2
D 35 ±0,15	-	200	500	1000	-	31	-	2	-
D 40 +0,15/-0,2	V 40	200*	500	1000	2000	34	34	3	3
D 50 ±0,2	V 50	500	1000	2000	-	44	44	3	3
D 60 ±0,25	-	500	1000	2000	-	52	-	4	-

Filter combination produces no result.

* only available for diameter D40

Specification

Stainless steelNI
AISI 304
PlainBL
Untreated

Sawed cross sections deburred blank, i.e. not surface treated.

Stainless Steel Characteristics

RoHS

On request

Further lengths

Information

Stainless steel construction tubes GN 990 can be supplied in these standard lengths.

The tolerances specified for the outside diameter of the round construction tubes comply with the requirements for split mono-block connector clamps. Two-piece connector clamps allow obviously larger tolerances on construction tubes.

How to order
