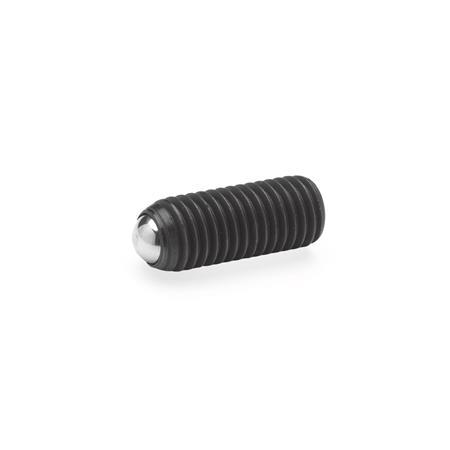

GN 605 Ball Point Screws, Steel, blackened
Type
| A | Full ball |
| B | Flat ball |
| V | Flat ball, with swivel limiting stop |
| VR | Flat ball, with swivel limiting stop, corrugated |
| d1 Type A Type B | Type V Type VR | l1 Nominal length | d2 | d3 | l2 ≈ | l3 ≈ | l4 ≈ | A/F | Static load in N Type A / Type B | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M 4 | - | 6 | 10 | 16 | - | - | 2,5 | 2 | 0,8 | 0,3 | - | 2 | 3500 |
| M 5 | - | 8 | 12 | 20 | - | - | 3 | 2,5 | 1 | 0,4 | - | 2,5 | 5000 |
| M 6 | M 6 | 10 | 16 | 20 | 25 | - | 4 | 3,2 | 1,3 | 0,6 | 0,45 | 3 | 9000 |
| M 8 | M 8 | 10 | 12 | 20 | 25 | 30 | 5,5 | 4,5 | 1,8 | 0,8 | 0,5 | 4 | 15000 |
| M 10 | M 10 | 12 | 16 | 20 | 25 | 35 | 7 | 6 | 2,3 | 0,8 | 0,6 | 5 | 24000 |
| M 12 | M 12 | 16 | 20 | 30 | 40 | - | 8,5 | 7,2 | 2,8 | 1 | 0,75 | 6 | 30000 |
| M 16 | M 16 | 20 | 25 | 35 | 50 | - | 12 | 10,7 | 4,3 | 1,3 | 1 | 8 | 73000 |
Filter combination produces no result.
Specification
Steel
Ball
RoHS
- Tempered
- Blackened
Ball
- Hardened
- Plain
RoHS
On request
Ball point screws with (full) plastic ball (type AK)
Information
Ball point screws GN 605 with full ball (type A) are used in applications where a ball point contact is required.
The flat faced moving ball (type B) allows a clamping or supporting of non parallel surfaces.
The ball of type V / VR can be swivelled to a maximum of 9° to ensure that clamping is always maintained on the flat section of the ball.
| How to order |
| ||||||
GN 605-M6-25-B |
