Aluminum, with 2 mounting holes

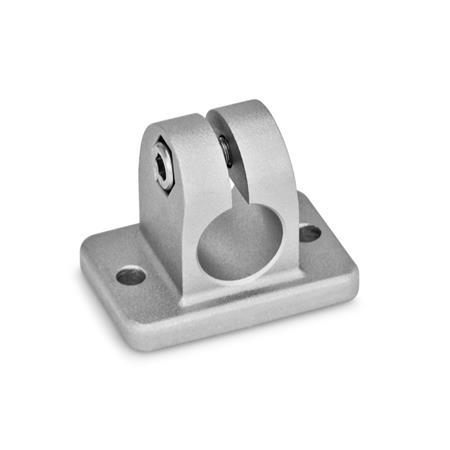

GN 145 Flanged Connector Clamps

Flanged Connector Clamps GN 145 thumbnail

Identification no.

2	With stainless steel socket cap srew DIN 912

Show filter

d₁ Bore	d₂	k Clamping length	l₁	l₂	m	t	x	y₁	y₂	z Screw location	Accessory recom. hand lever GN 911 for z l₃

B 10	5,5	25	40	25	18	7	35	50	38	M6-20	63
B 12	5,5	25	40	25	18	7	35	50	38	M6-20	45 \| 63
B 14	5,5	25	40	25	18	7	35	50	38	M6-20	45 \| 63
B 15	5,5	25	40	25	18	7	35	50	38	M6-20	45 \| 63
B 16	5,5	25	40	25	18	7	35	50	38	M6-20	45 \| 63
B 18	5,5	25	40	25	18	7	35	50	38	M6-20	45 \| 63

Filter combination produces no result.

Specification

Aluminum

Powder coated
Black, RAL 9005, textured finishSW
Plain, Matte shot-blastedBL

Socket cap screws DIN 912
Stainless steel AISI 304

Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring

Overview to appropriate standards of the assembly sets GN 965

Overview to appropriate standards of the assembly sets GN 968

Stainless Steel Characteristics

RoHS

Accessory

Adjustable Hand Levers GN 911

On request

With inch bores

Information

The clamping bore of flanged connector clamps GN 145 is mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.

Flanged connector clamps GN 145 can also be mounted to profile systems.

At the screw location _z, the socket cap screw reduces the bore cross-section for clamping.

For clamping without tools, the socket cap screw can be replaced by an adjustable hand lever GN 911 listed in the table as accessory.
