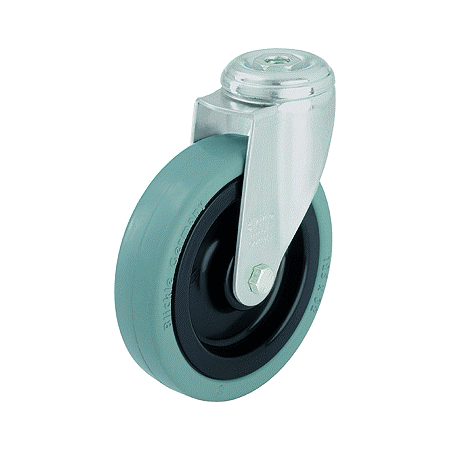

HA 5103
Radlager
| G | |
| K** |

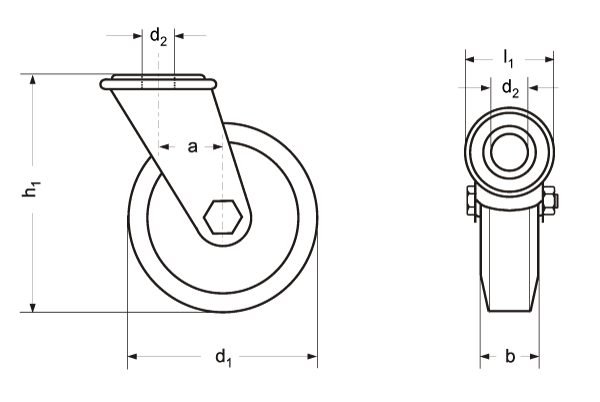

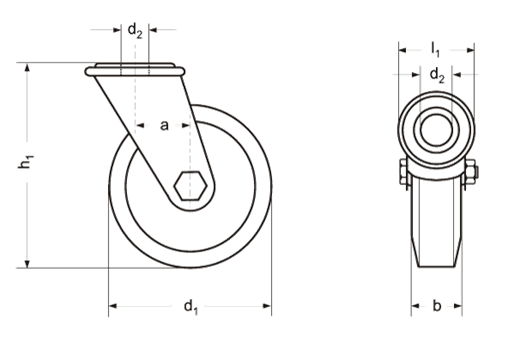

| d1 | b | h1 | l1 | d2 | a | T |
|---|---|---|---|---|---|---|
| 50 | 18 | 69 | 43 | 11 | 25 | 40 |
| 75 | 25 | 98 | 43 | 11 | 28 | 60 |
| 80* | 25 | 108 | 57 | 13 | 40 | 60 |
| 100 | 25 | 121 | 43 | 11 | 33 | 70 |
| 100S* | 25 | 133 | 57 | 13 | 40 | 90 |
| 125* | 25 | 158 | 57 | 13 | 40 | 80 |
| 150 | 32 | 182 | 57 | 13 | 40 | 110 |
Filter combination produces no result.
Specification
RoHS
RoHS compliant:
-
-
Weight:
-
-
