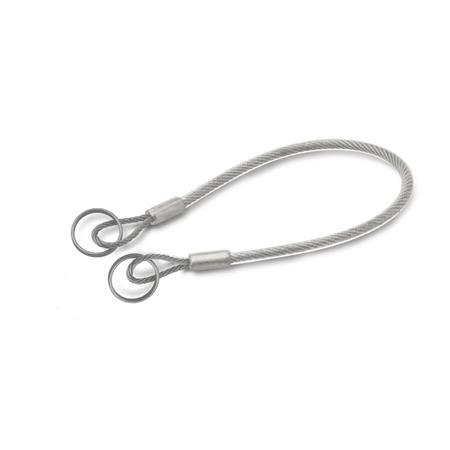

Stainless steel retaining cables GN 111.8 are available in 3 different types and can therefore be used in a wide range of applications, e.g. for loss protection or as connecting and mounting cables.

Due to the selection of materials, the stainless steel retaining cables are suitable for use in highly corrosive environments.

On delivery the key rings are already mounted on the stainless steel retaining cable. With type A, both rings have the same diameter d₁.

For all types the loops are reversed laterally and attached parallel to each other, which is not entirely considered in the simplified drawing. The load values given in the table are non-binding guide values and rule out any liability.

Type A and type B are ideal suitable for ball lock pins and locking pins with axial lock.

* - GN 113.11, GN 113.12 for pin Ø 5, Ø 6
- GN 113.1, GN 113.3, GN 113.4, GN 113.7, GN 113.8, GN 113.9, GN 113.10, GN 113.30, GN 214.2, GN 214.3, GN 214.6 for pin Ø 5, Ø 6, Ø 8
- GN 113.5, GN 113.6, GN 114.2, GN 114.3, GN 114.6, GN 124.1, GN 124.2 for all pin diameters

** - GN 113.11, GN 113.12, GN 314 for pin Ø 8, Ø 10, Ø 12
- GN 113.1, GN 113.3, GN 113.4, GN 113.7, GN 113.8, GN 113.9, GN 113.10, GN 113.30, GN 214.2, GN 214.3, GN 214.6 for pin Ø 10, Ø 12, Ø 16, Ø 20, Ø 25

*** - GN 113.11, GN 113.12, GN 314 for pin Ø 16, Ø 20, Ø 25
