with Full Extension and Dampened Self-Retracting Mechanism, Load Capacity up to 360 N

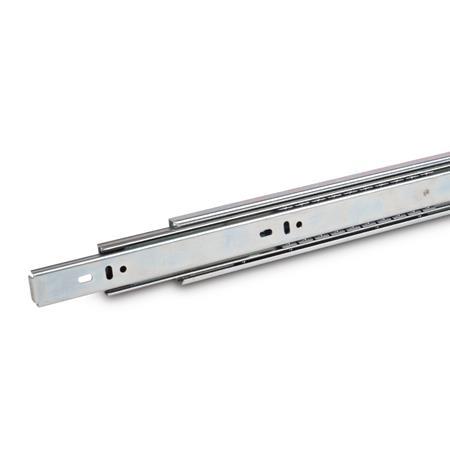

GN 1414 Telescopic Slides

Type

F	With rubber stop, locking device in back, detach function

Identification no.

1	Fastening using through-holes

Show filter

l₁	l₂ +3/-3 Stroke	l₃	F_s per pair in N at 10,000 cycles	at 100,000 cycles

300	250	550	260	140
350	320	670	260	140
400	375	775	310	190
450	450	900	360	240
500	500	1000	360	240
550	550	1100	310	190
600	600	1200	310	190
650	650	1300	260	140

Filter combination produces no result.

Specification

Slide profile
Steel, Zinc plated, blue passivatedZB

Bearings
Roller bearing steel, hardened

Ball cage, outer slide
Plastic

Ball cage, inner slide
Steel, zinc plated

Rubber stop and detach function
Plastic / Elastomer

Self-retracting mechanism, dampened
Steel / Plastic

Operating temperature -20 °C to 100 °C

Telescopic Slides - Application Video

Mounting holes to GN 1414

Telescopic Slides - Highlights

Telescopic Slides - General Notes and Overview of Types

Telescopic Slides - Mounting and Technical information

Telescopic Slides - Component Options and Fastening Options

RoHS

On request

Other lengths and hole spacing

Other attachment options

Other surfaces

Information

Telescopic slides GN 1414 are installed vertically and in pairs. The stroke reaches ≈ 100 % of the nominal length l₁ (full extension). The rubber stops of type F dampen the impact of the slide in the end positions. This feature minimizes noise development and increases the lifespan. If larger static or dynamic loads occur in the direction of extension, they should be absorbed by external stop elements.

The telescopic slides are delivered in pairs. They can be installed on the extension on either the left or right side due to the mechanics. All mounting holes are easy to reach through auxiliary holes. Only the mounting holes are shown, but other production-related holes may be present.
