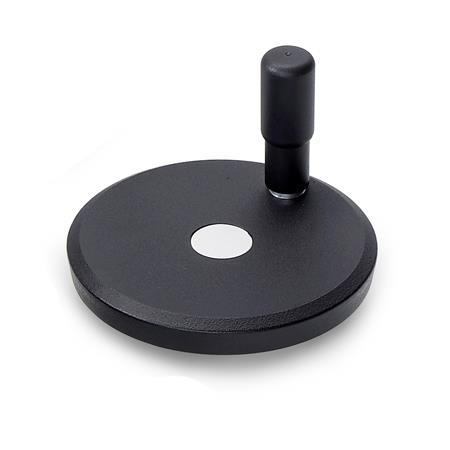

GN 923.30 Disk Handwheel Ø100
Bore code
| K | With keyway |
Type
| R | With revolving handle |
| d1 | d2 | d3 | d4 | b | h | l1 | l2 | l3 ≈ | Ø Handle GN 798.2 |
|---|---|---|---|---|---|---|---|---|---|
| 100 | 8 | 28 | 22 | 14 | 9,5 | 17 | 30 | 58 | 18 |
Filter combination produces no result.
Specification
Aluminum die casting
Hub machined
Rim turned
Powder coated
Black, RAL 9005, textured finishSW
Concentric runout and axial runout deviation of the rim < 0,4
Revolving handles GN 798.2
Plastic, Technoplymer
Black, matte finish
RoHS
Hub machined
Rim turned
Powder coated
Black, RAL 9005, textured finishSW
Concentric runout and axial runout deviation of the rim < 0,4
Revolving handles GN 798.2
Plastic, Technoplymer
Black, matte finish
RoHS
Information
| How to order |
| ||||||||
GN 923.30-100-K8-R |
