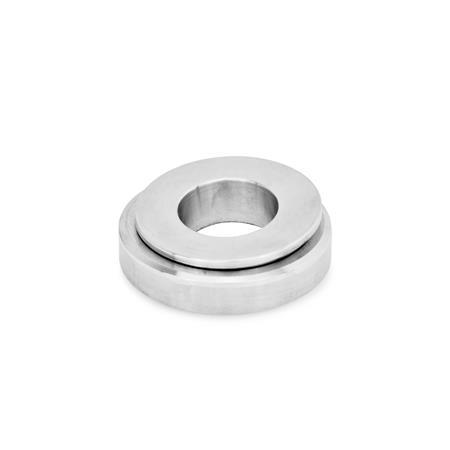

GN 350.3 Stainless Steel Spherical Leveling Washers
| d1 | d2 | d3 Minimum dimension | h ±0,5 | For screw up to max. | Static load in kN |
|---|---|---|---|---|---|
| 25 ±0,2 | 8,5 | 15 | 8 | M 8 | 27,1 |
| 32 ±0,3 | 13 | 20 | 10 | M 10 | 43,4 |
| 45 +0,3/-0,5 | 20 | 30 | 12,5 | M 16 | 84 |
| 58 +0,3/-1 | 29 | 38 | 16 | M 24 | 148 |
| 70 +0,3/-1 | 36 | 48 | 20 | M 30 | 225 |
| 80 +0,3/-1,2 | 44 | 61 | 20 | M 36 | 323 |
| 105 +0,3/-1,6 | 58 | 78 | 25 | M 48 | 546 |
Filter combination produces no result.
Specification
Information
Stainless steel spherical leveling washers GN 350.3 have been designed to match the leveling sets GN 350, GN 350.1, GN 350.2 and GN 350.5.
The two spherical washers are used together „undetachably“.
The load bearing capacity of these spherical washers is relatively high. This is not only due to the material quality but also to the matched sphere of the concave „pan“.
Furthermore it is recommended using high-strength washers for bridging d2.
| How to order |
| ||||
GN 350.3-80-NI |
