with Protruding Steel Bushing

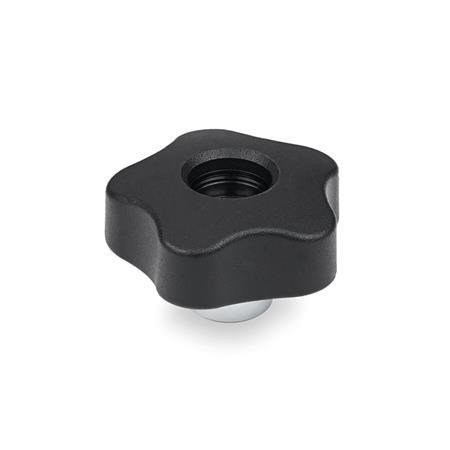

GN 5337.1 Star Knobs
Original design VCHT.
Type
| D | Without cover cap (threaded bore) |
| d1 | d3 | d4 | d5 | h1 | h2 | t | |
|---|---|---|---|---|---|---|---|
| 32 | M 5 | M 6 | 12 | 10 | 22,5 | 8,5 | 16,5 |
| 40 | M 6 | M 8 | 14 | 12 | 27 | 10 | 20 |
| 50 | M 8 | M 10 | 18 | 15 | 30 | 10 | 20 |
| 63 | M 10 | M 12 | 20 | 19 | 35,5 | 14 | 29 |
| 74 | M 12 | M 16 | 25 | 17 | 39,5 | 15 | 29 |
Filter combination produces no result.
Specification
Plastic
Technopolymer (Polyamide PA)
Bushing
Steel, zinc plated
RoHS
Technopolymer (Polyamide PA)
- Glass fiber reinforced
- Temperature resistant up to 130 °C
- Black, matte finish
Bushing
Steel, zinc plated
RoHS
Information
Star knobs GN 5337.1 with protruding bushing have important advantages:
The contact surface of the bushing is exactly perpendicular to the bore and the entire diameter is made of steel. The protruding steel bushing allows a perfect cross-pin connection.
