Accessory for Profile Systems, with Guide Step
GN 506 T-Nuts
| a | d1 | d2 | e1 | e2 | h1 | h2 | h3 | m | For slot width a | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5 | M 3 | M 4 | M 5 | - | 3 | 12 | 7,7 | 4,5 | 0,7 | 0,6 | 4 | 5 |
| 6 | M 3 | M 4 | M 5 | M 6 | 3,5 | 17 | 10,5 | 6,8 | 0,5 | 0,8 | 5 | 6 |
| 8 | M 4 | M 5 | M 6 | M 8 | 5 | 22 | 13,4 | 7,6 | 1,7 | 0,85 | 6,8 | 8 |
Filter combination produces no result.
Specification
Steel
Zinc plated, blue passivated
Ball
Stainless steel
Spring
Stainless steel
RoHS
Zinc plated, blue passivated
Ball
Stainless steel
Spring
Stainless steel
RoHS
Information

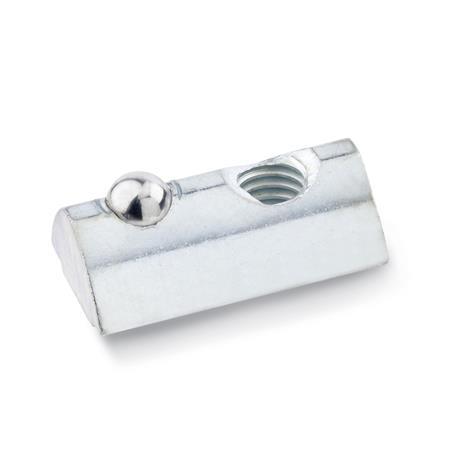

T-nuts GN 506 can be turned into position, i.e. they can be inserted at any point along the slot.
The guide step positions the nut parallel and centered in relation to the slot, a configuration which eases the sliding movement and prevents the assembly from twisting during tightening.
The spring element (ball / pressure spring) prevents the nut from accidentally sliding inside the slot, which is particularly advantageous when the profile rail is mounted perpendicularly.
| How to order |
| ||||
GN 506-5-M4 |
