with Axial Lock (Pawl)

GN 114.6 Stainless Steel Locking Pins, Knob / Slider Stainless Steel

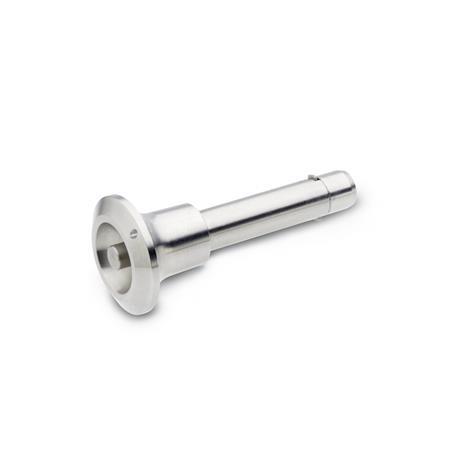

Stainless Steel Locking Pins Knob Slider Stainless Steel GN 114.6 thumbnail

Stainless Steel Locking Pins Knob Slider Stainless Steel GN 114.6 sketch

Show filter

d₁ -0,1	l₁ +0,4 Minimum size															a	b	d₂	d₃	d₄	d₅	l₂	l₃

6	16	20	25	30	35	40	45	50	60	70	80	-	-	-	-	2,3	0,5	7,5 +0,5	5,9	12	25	7	20
8	16	20	25	30	35	40	45	50	60	70	80	90	100	-	-	2,8	0,6	10 +0,5	7,9	15	30	8,4	21
10	15	20	25	30	35	40	45	50	60	70	80	90	100	110	120	3,3	1	12 +1	9,9	18	34	9,8	26
12	20	25	30	40	35	45	50	60	70	80	90	100	110	120	-	3,8	1	14 +1	11,9	18	34	11,3	26
16	30	35	40	45	50	60	70	80	90	100	110	120	130	140	150	4,8	1,2	19 +1	15,9	22	40	14,2	32
20	30	35	40	45	50	60	70	80	90	100	110	120	130	140	150	4,8	1,2	23 +1	19,8	25	40	14,8	33

Filter combination produces no result.

Specification

Knob / Push button / Slide
Stainless steel AISI 303

Plunger pin
Stainless steel AISI 303

Pawl
Stainless steel AISI 304 (sheet metal)

Pressure spring
Stainless steel AISI 301

Load Capacity of Ball Lock Pins / Locking Pins

Stainless Steel Characteristics

RoHS

Accessory

Ball Chains GN 111

Retaining Cables GN 111.2

Spiral Retaining Cables GN 111.4

Information

Stainless steel locking pins with axial lock GN 114.6 are used for quick fixing, connecting and locking of various jig and fixture systems. A typical application is location pins which have to be often removed and replaced again.

The rectangular pawls made of stainless steel sheet metal keep the locking pin in an axial position in the bore. It can be retracted by pressing the button, once released it returns the pressure spring into its locking position.

The technical appendix contains the load capacities for the double-sided shearing resistance (breaking strength).
